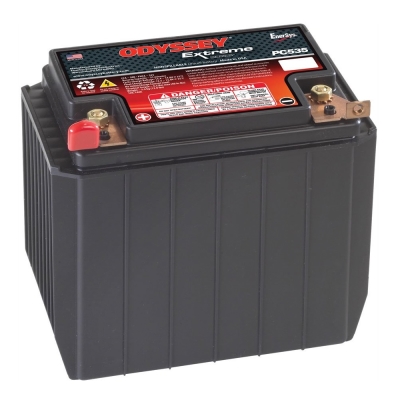

Odyssey PC535 (ES12V535)

Related Products


LVG1100AU
NOCO 6V & 12V 1.1A UltraSafe Battery Charger and Maintainer

SCH-SPI2
Schumacher 6V/12V 2A Fully Automatic Maintainer suitable power sports, cars and boats

VECIP65-12/4
You Save:$132.69 (32.5%)
Sale Price:$
Qty:
Shipping & Handling Calculator:

Post Code:
Model No Odyssey PC535 (ES12V535)
Description Odyssey UCR AGM PC535 Harley Low Heat Sidebox
Battery Type AGM
Voltage(V) 12
Colour TERMINAL: + M6 stud -
Length(mm) 170.2
Width(mm) 99.1
Height(mm) 158.5
Weight(kg) 5.4
Reserve Capacity 21
CCA 200
Product Rating Batteries Direct 5 Stars Rating - The best quality product of its type with a proven reliability and excellent warranty support
Brand Odyssey
Comments

Odyssey Powersports
The Powersports range makes Odyssey’s famous performance and quality available to the small engine starting market. Odyssey’s leading technology and power density is perfectly suited for applications where space and weight are at an absolute premium and durability in harsh conditions is paramount. This range feature the smaller insert and bolt-thru designs native to the Motorcycle, Jet Ski, Snowmobile, Quad Bike and other small engine markets and offer exceptional tolerance to vibrations and mechanical abuse. Due to their sealed design, Odyssey batteries provide amazing safety and mounting fl exibility, being able to be installed in any orientation except inverted.

Features Benefits
Guaranteed Longer Service Life

  • With an eight to twelve year design life (fl oat) and a three to ten year service life, Odyssey saves you time and money because you do not have to replace the battery as often.

Superior Cranking and Fast Charge Capability

  • The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, and with simple constant voltage charging there is no limitation on the inrush current, providing faster charge recovery.

Mounting Flexibility

  • The Odyssey battery may be installed on its sides at any angle without sacrificing any performance attributes. There is no fear of any acid spillage as Odyssey recycles the internal gas during operation or charging.

Superior Vibration resistance

  • Odyssey batteries are of military grade and have endured rigorous tests that demonstrate their overall ruggedness and exceptional tolerance of mechanical abuse.

Ready Out of the Box

  • Odyssey batteries are shipped fully charged. If Odyssey’s voltage is 12.65V or greater simply install the battery in your vehicle and you are ready to go!

Worry-Free Shipping

  • Owing to the drycell design, the Odyssey battery is non-spillable, so it may be shipped worry-free by Express Freight Service or by Air.

Longer Storage Life

  • Unlike conventional batteries that need to be recharged every six to twelve weeks, the Odyssey battery can be stored for up to 2 years at 25-degrees. Simply recharge and Odyssey is returned to full power.

Excellent Deep Discharge Recovery

  • Should Odyssey become deeply discharged, simply recharge following instructions in the Odyssey Owner’s Manual.
Odyssey Range

Model Voltage PHCA** (5 sec) CCA* HCA MCA Nominal Capacity Reserve Capacity Minutes Length (mm) Width (mm) Height (mm) Weight (kg) Terminal Torque Specs Nm max Internal Resistance (mΩ) Short Circuit Current

20Hr

RateAh

10Hr

RateAh

PC310 12 310 100 200 155 8 7 9 138.0 86.0 101.0 2.7 - M4 Ins + 1.0 27.1 455A
PC535 12 535 200 300 265 14 13 21 170.2 99.1 158.5 5.4   + M6 Stud - 4.5 8 1000A
PC545MJ 12 460 150 280 220 13 12 18 177.8 85.9 131.3 5.2 - M6 Ins + 5.6 10 1200A
PC625 12 530 200 420 340 18 17 27 170.2 99.1 176.5 6.0 - M6 Ins + 4.5 7 1800A
PC680P 12 520 170 350 280 16 16 24 184.7 79.0 191.8 7.0 - M6 Ins + 5.6 7 1800A
PC680MJT 12 520 170 350 280 16 16 24 184.7 79.0 191.8 7.0 -BrassSAE+ 5.6 7 1800A
PC925MJT / PC925LMJ 12 900 330 610 480 28 27 48 168.7 179.1 148.1 11.8 -BrassSAE+ /  + M6 Ins - 6.8 5 2400A
PC950^ (ER30) 12 950 400 600 500 34 32 60 250.0 97.0 156.0 9.0 - M6 Stud + 3.9 7.1 1700A
PC1100^ (ER40) 12 1100 500 800 650 45 43 87 250.0 97.0 206.0 12.5 - M6 Stud + 3.9 5.1 2450A
PC1200MJT 12 1200 540 860 725 42 40 78 199.9 169.2 193.0 17.4 -BrassSAE+ 6.8 4.5 2600A
PC1230 12 1230 760 1050 815 55 50 110 240.3 179.8 201.2 20.6 + SAE & GM - 6.8 2.5 3100A
PC1350 12 1350 770 1080 960 95 88.5 195 353.0 175.0 190.0 27.4 - SAE Din +  N/A 4.2 2900A
PC1400-25 12 1400 850 1150 950 65 55 130 240.3 173.7 220.7 22.7 + SAE - 6.8 2.5 3100A
PC1400-35 12 1400 850 1150 950 65 55 130 240.3 173.7 220.7 22.7 - SAE + 6.8 2.5 3100A
PC1500DT 12 1500 850 1250 1050 68 62 135 275.6 179.8 200.2 22.4 + SAE & GM - 6.8 2.5 3100A
PC1700MJT 12 1550 810 1325 1175 68 65 142 331.0 168.4 197.6 27.6 -BrassSAE+ 6.8 3.5 3500A
PC1750-65
 12 1750
 950 1350
 1070  74  65 145
 300.5  182.9  190.5  26.3  + SAE - 6.8
2.0
 5000A
PC2150MJ 12 2150 1150 1545 1370 100 92 205 331.7 175.0 243.6 35.3 -BrassSAE+ 16.9-22.6 2.2 5000A
PC2250MJ 12 2250 1225 1730 1550 126 114 240 286.0 269.0 233.0 39.0 Opp Dual 11.0
For 3/8” Stud Only
2.1 5000A


* Cold Start Performance S.A.E J537 JUNE 82
** Pulse Current
† Can be fitted with brass automotive terminal
^ PC370, PC950 and PC1100 also known as Extreme ER15, Extreme ER30 and Extreme ER40 respectively
# Fitted with dual terminals as standard
Optional metal jacket available on PC680P
Operating Temperature Range = PC310 and PC1800-FT: -40°C to 50°C, PC370, PC950 and PC1100: -40°C to 50°C, PC535 and PC625: -40°C to 45°C, PC680P: -40°C to 45°C, PC545MJ, PC680MJT, PC925LMJT, PC925MJT, PC1200MJT and PC1700MJT (with metal jacket): -40°C to 80°C, PC1220, PC1350 and PC2250: -40°C to 40°C, All other models: -40°C to 80°C
BCI models are PC1230DT, PC1400-25, PC1400-35, PC1500DT, PC1750-65

May be suitable for Harley Davidson
1967-1978 1000cc XLH Sportster matching and equivalent products
1971-1978 1200cc FX Series (Elec S) matching and equivalent products
1979-1985 1000cc XL Series matching and equivalent products
1979-1994 FX, FXR matching and equivalent products
1983-1985 1000cc XLX-61, XR1000 matching and equivalent products
1986-1996 883cc XLH matching and equivalent products
1987-1993 1100cc XL Series matching and equivalent products
1987-1996 1200cc XL, XLH matching and equivalent products
1999-2000 1340cc FXR matching and equivalent products

For suitable chargers, please see related products

Authorised Distributor Odyssey Batteries

Data Sheet Odyssey PC535 (ES12V535)1471585068_1.pdf
Warranty Info PC5351333331492_2.pdf




Odyssey UCR AGM PC535
