Odyssey PC1750-65

Related Products


CTEK MXS7.0
CTEK 12 Volt 7 Amp Charger

IC1000
Projecta Intelli-Charge Automatic 12V 10A 7 Stage Battery Charger
You Save:$359.32 (37.5%)
Sale Price:$
Qty:
Shipping & Handling Calculator:

Post Code:
Model No Odyssey PC1750-65

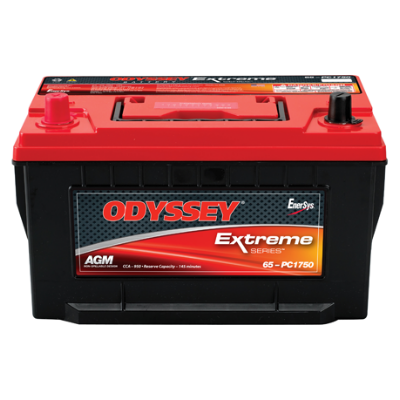

Description Odyssey UCR AGM PC1750-65 Explorer GMC 250 Size
AGM
12
Colour TERMINAL: + SAE -
Length(mm) 300.5
Width(mm) 182.9
Height(mm) 190.5
Weight(kg) 26.3
Reserve Capacity 145
CCA 950
Product Rating Batteries Direct 5 Stars Rating - The best quality product of its type with a proven reliability and excellent warranty support
Brand Odyssey
Comments
Odyssey UCR AGM
Model Voltage PHCA** (5 sec) CCA* HCA MCA Nominal Capacity Reserve Capacity Minutes Length (mm) Width (mm) Height (mm) Weight (kg) Terminal Torque Specs Nm max Internal Resistance (mΩ) Short Circuit Current

20Hr

RateAh

10Hr

RateAh

PC310 12 310 100 200 155 8 7 9 138.0 86.0 101.0 2.7 - M4 Ins + 1.0 27.1 455A
PC535 12 535 200 300 265 14 13 21 170.2 99.1 158.5 5.4   + M6 Stud - 4.5 8 1000A
PC545MJ 12 460 150 280 220 13 12 18 177.8 85.9 131.3 5.2 - M6 Ins + 5.6 10 1200A
PC625 12 530 200 420 340 18 17 27 170.2 99.1 176.5 6.0 - M6 Ins + 4.5 7 1800A
PC680P 12 520 170 350 280 16 16 24 184.7 79.0 191.8 7.0 - M6 Ins + 5.6 7 1800A
PC680MJT 12 520 170 350 280 16 16 24 184.7 79.0 191.8 7.0 -BrassSAE+ 5.6 7 1800A
PC925MJT / PC925LMJ 12 900 330 610 480 28 27 48 168.7 179.1 148.1 11.8 -BrassSAE+ /  + M6 Ins - 6.8 5 2400A
PC950^ (ER30) 12 950 400 600 500 34 32 60 250.0 97.0 156.0 9.0 - M6 Stud + 3.9 7.1 1700A
PC1100^ (ER40) 12 1100 500 800 650 45 43 87 250.0 97.0 206.0 12.5 - M6 Stud + 3.9 5.1 2450A
PC1200MJT 12 1200 540 860 725 42 40 78 199.9 169.2 193.0 17.4 -BrassSAE+ 6.8 4.5 2600A
PC1230 12 1230 760 1050 815 55 50 110 240.3 179.8 201.2 20.6 + SAE & GM - 6.8 2.5 3100A
PC1350 12 1350 770 1080 960 95 88.5 195 353.0 175.0 190.0 27.4 - SAE Din +  N/A 4.2 2900A
PC1400-25 12 1400 850 1150 950 65 55 130 240.3 173.7 220.7 22.7 + SAE - 6.8 2.5 3100A
PC1400-35 12 1400 850 1150 950 65 55 130 240.3 173.7 220.7 22.7 - SAE + 6.8 2.5 3100A
PC1500DT 12 1500 850 1250 1050 68 62 135 275.6 179.8 200.2 22.4 + SAE & GM - 6.8 2.5 3100A
PC1700MJT 12 1550 810 1325 1175 68 65 142 331.0 168.4 197.6 27.6 -BrassSAE+ 6.8 3.5 3500A
PC1750-65
 12 1750
 950 1350
 1070  74  65 145
 300.5  182.9  190.5  26.3  + SAE - 6.8
2.0
 5000A
PC2150MJ 12 2150 1150 1545 1370 100 92 205 331.7 175.0 243.6 35.3 -BrassSAE+ 16.9-22.6 2.2 5000A
PC2250MJ 12 2250 1225 1730 1550 126 114 240 286.0 269.0 233.0 39.0 Opp Dual 11.0
For 3/8” Stud Only
2.1 5000A


* Cold Start Performance S.A.E J537 JUNE 82
** Pulse Current
† Can be fitted with brass automotive terminal
^ PC370, PC950 and PC1100 also known as Extreme ER15, Extreme ER30 and Extreme ER40 respectively
# Fitted with dual terminals as standard
Optional metal jacket available on PC680P
Operating Temperature Range = PC310 and PC1800-FT: -40°C to 50°C, PC370, PC950 and PC1100: -40°C to 50°C, PC535 and PC625: -40°C to 45°C, PC680P: -40°C to 45°C, PC545MJ, PC680MJT, PC925LMJT, PC925MJT, PC1200MJT and PC1700MJT (with metal jacket): -40°C to 80°C, PC1220, PC1350 and PC2250: -40°C to 40°C, All other models: -40°C to 80°C
BCI models are PC1230DT, PC1400-25, PC1400-35, PC1500DT, PC1750-65

View suitable chargers, click links below
CTEK MXS7.0 Charger
Projecta IC700 Charger
Projecta IC1000 Charger
Projecta IC1500 Charger

Authorised Distributor Odyssey Batteries

Warranty Info PC1750-651333332175_1.pdf
Data Sheet Odyssey PC1750-651471585404_2.pdf




Odyssey UCR AGM PC1750-65
