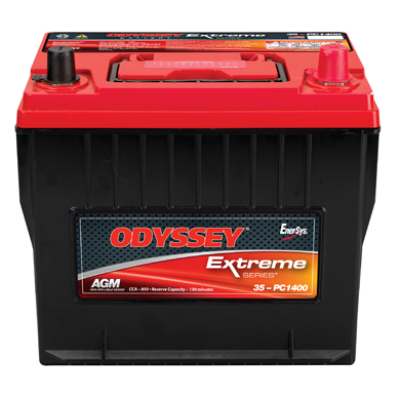

Odyssey PC1400-35

Related Products


VECIP65-12/4

LVG3500AU
NOCO 6V & 12V 3.5A UltraSafe Battery Charger and Maintainer

SCH-SPI3
Schumacher 12V 3A Fully Automatic Maintainer suitable Motorcycles, boats, cars, lithium batteries (LiFePO4)
You Save:$279.54 (32.5%)
Sale Price:$
Qty:
Shipping & Handling Calculator:

Post Code:
Model No Odyssey PC1400-35
Description Odyssey UCR AGM PC1400-35 General Use 58 Size
Battery Type AGM
Voltage(V) 12
Colour TERMINAL: - SAE +
Length(mm) 240.3
Width(mm) 173.7
Height(mm) 220.7
Weight(kg) 22.7
Reserve Capacity 130
CCA 850
Product Rating Batteries Direct 5 Stars Rating - The best quality product of its type with a proven reliability and excellent warranty support
Brand Odyssey
Comments

Odyssey Dual Purpose
This range includes the original Odyssey batteries which feature the instantly identifi able and very sturdy full metal jacket and brass terminals, along with a number of new non-metal jacketed additions to the line-up. These combine to vastly extend fi tment options for world carpark. Smaller variants and perfect for SLI service in Race Cars and Performance Cars, while the larger case types are ideal for dual purpose use in 4WDs, Hot Rods, Modifi ed Cars, Emergency vehicles, Trucks, Tractors and Marine applications.

Odyssey batteries are manufactured by Enersys, a world leader in lead acid battery technology, and feature superior fl at plates constructed from super effi cient 99.99% pure lead. These batteries are purpose built to excel in the most demanding starting and dual purpose applications and meet or exceed military grade specifi cations, offering maximum vibration resistance, exceptional tolerance of mechanical abuse and outstanding CCA and Ah ratings for their cubic capacity.

Features Benefits
Guaranteed Longer Service Life

  • With an eight to twelve year design life (fl oat) and a three to ten year service life, Odyssey saves you time and money because you do not have to replace the battery as often.

Superior Cranking and Fast Charge Capability

  • The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, and with simple constant voltage charging there is no limitation on the inrush current, providing faster charge recovery.

Mounting Flexibility

  • The Odyssey battery may be installed on its sides at any angle without sacrificing any performance attributes. There is no fear of any acid spillage as Odyssey recycles the internal gas during operation or charging.

Superior Vibration resistance

  • Odyssey batteries are of military grade and have endured rigorous tests that demonstrate their overall ruggedness and exceptional tolerance of mechanical abuse.

Ready Out of the Box

  • Odyssey batteries are shipped fully charged. If Odyssey’s voltage is 12.65V or greater simply install the battery in your vehicle and you are ready to go!

Worry-Free Shipping

  • Owing to the drycell design, the Odyssey battery is non-spillable, so it may be shipped worry-free by Express Freight Service or by Air.

Longer Storage Life

  • Unlike conventional batteries that need to be recharged every six to twelve weeks, the Odyssey battery can be stored for up to 2 years at 25-degrees. Simply recharge and Odyssey is returned to full power.

Excellent Deep Discharge Recovery

  • Should Odyssey become deeply discharged, simply recharge following instructions in the Odyssey Owner’s Manual.
Odyssey Range

Model Voltage PHCA** (5 sec) CCA* HCA MCA Nominal Capacity Reserve Capacity Minutes Length (mm) Width (mm) Height (mm) Weight (kg) Terminal Torque Specs Nm max Internal Resistance (mΩ) Short Circuit Current

20Hr

RateAh

10Hr

RateAh

PC310 12 310 100 200 155 8 7 9 138.0 86.0 101.0 2.7 - M4 Ins + 1.0 27.1 455A
PC535 12 535 200 300 265 14 13 21 170.2 99.1 158.5 5.4   + M6 Stud - 4.5 8 1000A
PC545MJ 12 460 150 280 220 13 12 18 177.8 85.9 131.3 5.2 - M6 Ins + 5.6 10 1200A
PC625 12 530 200 420 340 18 17 27 170.2 99.1 176.5 6.0 - M6 Ins + 4.5 7 1800A
PC680P 12 520 170 350 280 16 16 24 184.7 79.0 191.8 7.0 - M6 Ins + 5.6 7 1800A
PC680MJT 12 520 170 350 280 16 16 24 184.7 79.0 191.8 7.0 -BrassSAE+ 5.6 7 1800A
PC925MJT / PC925LMJ 12 900 330 610 480 28 27 48 168.7 179.1 148.1 11.8 -BrassSAE+ /  + M6 Ins - 6.8 5 2400A
PC950^ (ER30) 12 950 400 600 500 34 32 60 250.0 97.0 156.0 9.0 - M6 Stud + 3.9 7.1 1700A
PC1100^ (ER40) 12 1100 500 800 650 45 43 87 250.0 97.0 206.0 12.5 - M6 Stud + 3.9 5.1 2450A
PC1200MJT 12 1200 540 860 725 42 40 78 199.9 169.2 193.0 17.4 -BrassSAE+ 6.8 4.5 2600A
PC1230 12 1230 760 1050 815 55 50 110 240.3 179.8 201.2 20.6 + SAE & GM - 6.8 2.5 3100A
PC1350 12 1350 770 1080 960 95 88.5 195 353.0 175.0 190.0 27.4 - SAE Din +  N/A 4.2 2900A
PC1400-25 12 1400 850 1150 950 65 55 130 240.3 173.7 220.7 22.7 + SAE - 6.8 2.5 3100A
PC1400-35 12 1400 850 1150 950 65 55 130 240.3 173.7 220.7 22.7 - SAE + 6.8 2.5 3100A
PC1500DT 12 1500 850 1250 1050 68 62 135 275.6 179.8 200.2 22.4 + SAE & GM - 6.8 2.5 3100A
PC1700MJT 12 1550 810 1325 1175 68 65 142 331.0 168.4 197.6 27.6 -BrassSAE+ 6.8 3.5 3500A
PC1750-65
 12 1750
 950 1350
 1070  74  65 145
 300.5  182.9  190.5  26.3  + SAE - 6.8
2.0
 5000A
PC2150MJ 12 2150 1150 1545 1370 100 92 205 331.7 175.0 243.6 35.3 -BrassSAE+ 16.9-22.6 2.2 5000A
PC2250MJ 12 2250 1225 1730 1550 126 114 240 286.0 269.0 233.0 39.0 Opp Dual 11.0
For 3/8” Stud Only
2.1 5000A


* Cold Start Performance S.A.E J537 JUNE 82
** Pulse Current
† Can be fitted with brass automotive terminal
^ PC370, PC950 and PC1100 also known as Extreme ER15, Extreme ER30 and Extreme ER40 respectively
# Fitted with dual terminals as standard
Optional metal jacket available on PC680P
Operating Temperature Range = PC310 and PC1800-FT: -40°C to 50°C, PC370, PC950 and PC1100: -40°C to 50°C, PC535 and PC625: -40°C to 45°C, PC680P: -40°C to 45°C, PC545MJ, PC680MJT, PC925LMJT, PC925MJT, PC1200MJT and PC1700MJT (with metal jacket): -40°C to 80°C, PC1220, PC1350 and PC2250: -40°C to 40°C, All other models: -40°C to 80°C
BCI models are PC1230DT, PC1400-25, PC1400-35, PC1500DT, PC1750-65

For suitable chargers, please see related products

Authorised Distributor Odyssey Batteries

Data Sheet Odyssey PC1400-351471585321_1.pdf
Warranty Info PC1400-351333332066_2.pdf
