Model No OPTIMA D27M

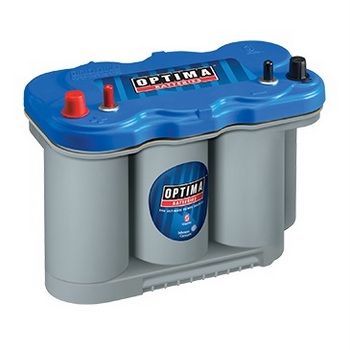

Description Optima D27M Blue Top Deep-cycle/Starting Marine Battery
Weight(kg) 24.4
Product Rating Batteries Direct 5 Stars Rating - The best quality product of its type with a proven reliability and excellent warranty support
Brand Optima
Comments
Optima Blue Top Marine Battery

Model Voltage

CCA (Amps)

Ah (@ C20)
RC (in mins)
Weight (kg)
Terminals
Dimensions** (L x W x H)(mm)
34M
12
800
50
110
17.5
+ Dual -
254x171x199
D34M
12
750
55
120
19.6 + Dual -
254x171x199
D27M
12
800  66 140  24.4 + Dual -
309x173x222
D31M
12
900  75
155  27.3
+ Dual -
329x171x238
 *Specifications may change without notice **Dimensions are overall maximum and include all handles

Optima Blue Top Marine Battery

OPTIMA® BLUETOP® D27M Ultra high-performance SPIRALCELL TECHNOLOGY® AGM (absorbent glass mat) dual-purpose battery for marine and RV. BLUETOP® has three times the cycling capability (rechargeability) with ultimate cranking power for your boat or RV in a maintenance-free package. Perfect for multiple high-demand accessories and trolling motors with 15 times the vibration resistance and lighter weight. Lower internal resistance provides more efficient power output and faster recharges.

The OPTIMA® model number for this battery is D27M. If you are replacing an OPTIMA® battery you already have, this model is the same as batteries marked 8027-127, 9027-127, BLUES27M, SC27DM, or N99D27MBLUE.

Warranty: 2 years private use, all OPTIMA® have their warranty details on the top label and are honoured by the warranty stated on that label.

Battery Model: D27M
Part Number: 8027-127
NSN: Number applied for, product currently available
UPC Code: 8 11405 00166 6

Performance Data

Cold Cranking Amps: 800
Cranking Amps: 1000
Nominal Voltage: 12 volts
Open Circuit Voltage (fully charged): 13.1 volts
Internal Resistance (fully charged): 0.0025 ohms
Capacity: 66 Ah (C/20)
Reserve Capacity: BCI: 140 minutes (25 amp discharge, 80°F (26.7°C), to 10.5 volts cut-off)

Physical Characteristics

Plate Design:

High purity lead-tin alloy.  Wound cell configuration utilizing proprietary SPIRALCELL TECHNOLOGY®.

Electrolyte:

Sulfuric acid, H2SO4

Case: Polypropylene
Case Color: Light Gray
Cover Color: “OPTIMA“ Blue
Group Size: BCI: 27
Post Type: Dual SAE & 5/16 Stainless Stud
Weight: 24.4 KG
Length: 307 mm
Width: 172 mm
Height: 222 mm

Power

CCA (BCI 0°F): 800 amps
MCA (BCI 32°F): 1000 amps

Recommended Charging

The following charging methods are recommended to ensure a long battery life: (Always use a voltage regulated charger with voltage limits set as described below.)

Model: D27M
These batteries are designed for starting and deep cycle applications and for use in vehicles with large accessory loads.


Recommended Charging Information

Alternator: 13.65 to 15.0 volts
Battery Charger: 13.8 to 15.0 volts; 10 amps maximum; 6-12 hours approximate
Float Charge: 13.2 to 13.8 volts; 1 amp maximum; (indefinite time at lower voltages)
Rapid Recharge (Constant voltage charger): Maximum voltage 15.6 volts. No current limit as long as battery temperature remains below 125°F (51.7°C). Charge until current drops below 1 amp.
Cyclic or Series String Applications::

14.7 volts.  No current limit as long as battery temperature remains below 125°F (51.7°C).  When current falls below 1 amp, finish with 3 amp constant current for 1 hour.
All limits must be strictly adhered to.
