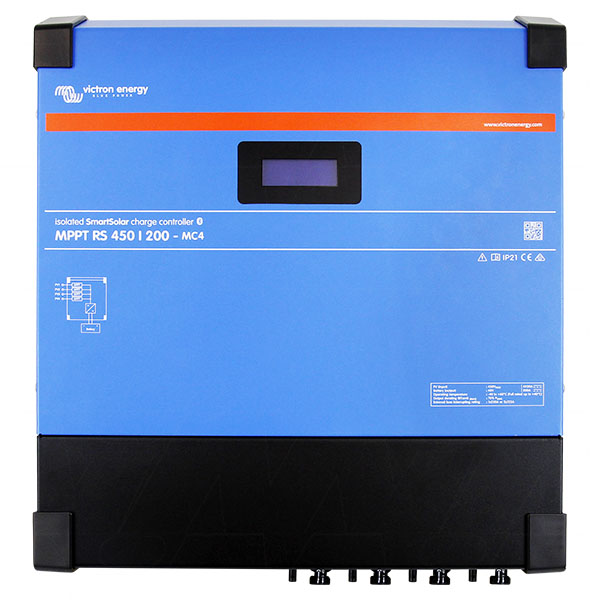

Victron Energy SmartSolar 450V 200A CAN-Bus Smart Solar High Voltage Charge Controller MPPT RS Type SCC145120510

SmartSolar MPPT RS 450/200-MC4
Victron Energy SmartSolar 450V 200A CAN-Bus Smart Solar High Voltage Charge Controller MPPT RS Type SCC145120510

$2851 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:

Product Details

Model No	SmartSolar MPPT RS 450/200-MC4
Selling Unit	EACH
Description	Victron Energy SmartSolar 450V 200A CAN-Bus Smart Solar High Voltage Charge Controller MPPT RS Type SCC145120510
Application	Automotive/Marine/RV, Auxilliary Battery Banks, Off-Grid & Self Consumption Solar, UPS
Original Brand	Victron Energy SCC145120510d
Voltage	450V
Brand	Victron Energy
Size	200A
Width	434mm
Height	487mm
Length/Breadth/Depth	146mm
Weight	13700g
Weight(kg)	13.7
Brand	Victron Energy

Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller
The MPPT RS SmartSolar is a 48V Solar charge controller with up to 450VDC PV input and either 100A, or 200A output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required.

Multiple independent MPPT tracking inputs
With multiple MPPT trackers, you can optimize your solar panel design for maximum performance for your specific location.

Isolated PV connections for additional safety
Full galvanic isolation between PV and battery connections provide additional overall system safety.

Wide MPPT voltage range
80 - 450 VDC PV operating range, with a 120VDC PV startup voltage.

Light weight, efficient and quiet
Thanks to high frequency technology and a new design this powerful charger weighs only 7.9 kg for the 100A model. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.

Display and Bluetooth
The display reads battery, and controller parameters. The parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with Victron Connect.

PV Isolation resistance monitoring for peace of mind at higher voltages
The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.

VE.Can and VE.Direct port
For connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Can allows for up to 25 units to be connected together in parallel and synchronize their charging.

I/O Connections
Programmable Relay, temperature sensor, auxiliary, digital input and voltage sensor connections. The remote input can accept the Victron small BMS, and other BMS with allow-to-charge signal.

This package comes supplied with:
