Replaces discontinued SCC115060310

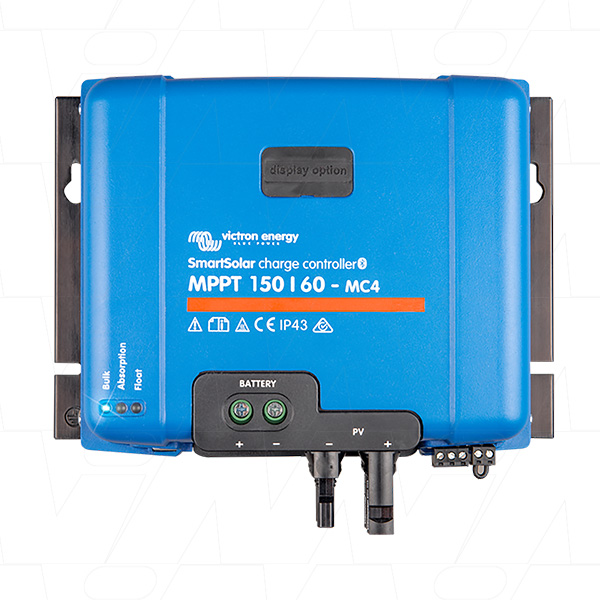

SmartSolar MPPT 150/60-MC4 solar charge controller from Victron Energy with:

• 12V/24V/36V/48V auto select battery voltage *Software tool required for 36V
• 60A rated charge current
• Maximum PV open circuit voltage - 150V absolute maximum coldest conditions
• 860W @ 12V, 1720W @ 24V, 2580W @ 36V, 3440W @ 48V  maximum PV power
• Automatic load disconnect
• 99% peak efficiency
• Reverse polarity (fuse) protection, PV reverse polarity protection, output short circuit protection, over temperature protection

Bluetooth Smart built-in
The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve.
Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP.
The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98 %.

Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection
Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.

Internal temperature sensor
Compensates absorption and float charge voltage for temperature.

Optional external battery voltage, temperature and current sensing via Bluetooth
A Smart Battery Sense, a BMV-712 Smart Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature (and current, in case of a BMV-712 or a SmartShunt) to one or more SmartSolar Charge Controllers.

Synchronized parallel charging with Bluetooth
Up to 10 units can be synchronized with Bluetooth.

Fully discharged battery recovery function
Will initiate charging even if the battery has been discharged to zero volts.
Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.

VE.Direct
For a wired data connection to a Color Control GX, other GX products, PC or other devices

Remote on-off
To connect for example to a VE.BUS BMS.

Programmable relay
Can be programmed to trip on an alarm, or other events.

Optional: LCD display Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display

View the SmartSolar Pluggable LCD Display for the SmartSolar Charge Controllers

Fully discharged battery recovery function will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.

This package comes supplied with:

• 12V/24V/36V/48V 60A Solar Charge Controller
• Preset charge profiles for:
  • SLA
  • GEL
  • LITHIUM
