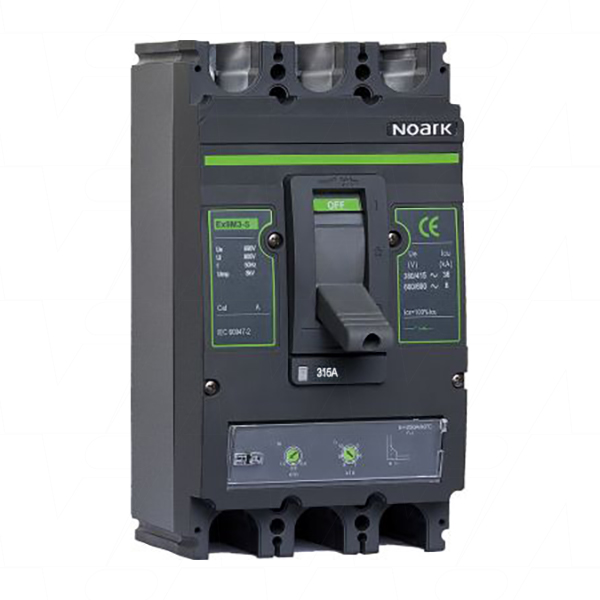

NOARK N852722 MCCB EX9MD3B 315A 750V 3 Pole DC Circuit Breaker

N852722-3P-MCCB 315A/750VDC
NOARK N852722 MCCB EX9MD3B 315A 750V 3 Pole DC Circuit Breaker

$759 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:

Product Details

Model No	N852722-3P-MCCB 315A/750VDC
Selling Unit	EACH
Description	NOARK N852722 MCCB EX9MD3B 315A 750V 3 Pole DC Circuit Breaker
Application	Battery Banks, Solar, Automation, Control, Telecommunications, DC circuit applications
Voltage	750V
Brand	Noark
Size	315A
Width	140mm
Height	255mm
Length/Breadth/Depth	118.5mm
Weight	5000g
Weight(kg)	5
Brand	Noark

Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..

Specifications

Noark Series	EX9MD3B TM DC315 3P
Poles	3 (250VDC per pole)
Current Rating (A)	315A
Voltage (Max.)	750VDC
Rated Insulation Voltage (VDC) Ui	1000VDC
Rated Breaking Capacity	25kA
Release Technology	Thermo Magnetic
Frame Size	3
Frame Rating	400A
IP Rating (All sides/terminals)	IP40 / 20
Standards	IEC/EN/AS60947-2

Noark MCCB's are adjustable:

If the above product is out of stock, you can use the 400A rated N852724 model with the pot switch adjusted to 0.8 to still achieve a 320A rating.

All NOARK DC MCCBs come with Screw Clamp Terminals
