26707BKS 35mm² conductor CSA, 494/0.30 (no. strands/mm), current rating 172A.

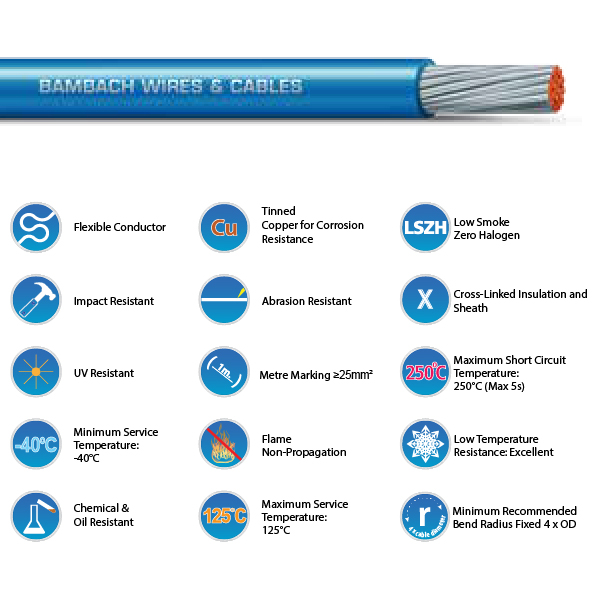

SafeX125 LSZH (Low Smoke Zero Halogen) flexible single core tinned copper cable.

Application:
Wiring of switchboards, control, general wiring, instrumentation and communication systems. Used where LSZH (Low Smoke Zero Halogen) is needed and where higher current rating are required.

Benefits

• Cross-Linked: Insulation is fully cross-linked to enhance performance
• Low Smoke: Reduced smoke emission in a fire situation
• Low Toxicity: Reduced toxicity in a fire situation
• Non-Corrosive: No corrosive gas emission in a fire situation
• Flame Retardant: Flame retardant, low fire load and non flame propagating
• Extreme Flexibility: Class 5 flexible conductor stranding
• Easy to Solder: Tinned copper conductors for easy adhesion

Features

• Up to 50% higher current ratings compared to PVC flexible cable
• Reduced overall diameters compared with PVC flexible cable
• Cross-linked insulation forms a stronger structure and does not melt or flow when heated
• Oxygen free tinned copper for high conductivity soldered connections and corrosion protection
• Operating temperature: -40 to 125°C
