Pylontech US5000-B 48V 100Ah 4.8kWh Rack Mounted Battery Module LiFePO4 4RU 15S1P

US5000-B
Pylontech US5000-B 48V 100Ah 4.8kWh Rack Mounted Battery Module LiFePO4 4RU 15S1P

$3500 inc GST.

Our Best Price

Shipping & Handling Calculator:

Post Code:

Product Details

Model No	US5000-B
Selling Unit	EACH
Description	Pylontech US5000-B 48V 100Ah 4.8kWh Rack Mounted Battery Module LiFePO4 4RU 15S1P
Application	Home Power Storage, Telecommunications, Off Grid power, Industrial Power, Remote Infrastrucure Power
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	48V
Nominal Capacity	100000mAh
Maximum Continuous Discharge Current	100000
Brand	Pylontech
Size	4RU
Width	442mm
Height	161mm
Length/Breadth/Depth	420mm
Weight	39000g
Weight(kg)	39
Brand	Pylontech

Important Information:

Please check the Pylontech compatibilty guide to see if your inverter uses RS485 or Can Communication protocols.

When using RS485 protocol, This Pylontech Battery can be connected in up to 6 strings of 16 batteries for a total of 96 US5000-B batteries in parallel. No LV Hub is required.

When using Can protocol,This Pylontech Battery can be connected in up to 6 strings of 16 batteries per LV Hub (6x16=96 Batteries per LV Hub), A total of 5 LV Hubs can then be paralleled up for a total of 480 US5000-B batteries in parallel.(96x5=480 Batteries)

No Series connection allowed

External BMS

A LV-HUB communications hub is required when more than 1 string of batteries is paralleled using CAN Communications Protocol.

A single LV-HUB communications hub can manage up to 6 strings of 16 batteries for a total of 96 US5000-B batteries per LV-Hub

A total of five LV Hubs and their associated 96 batteries can then be parralled to a total 480 US5000-B Batteries.

Systems containing between 2 to 5 LV Hubs will require 1 additional LV Hub to act as the Master Hub.

Communications:

RS232
RS485
CAN

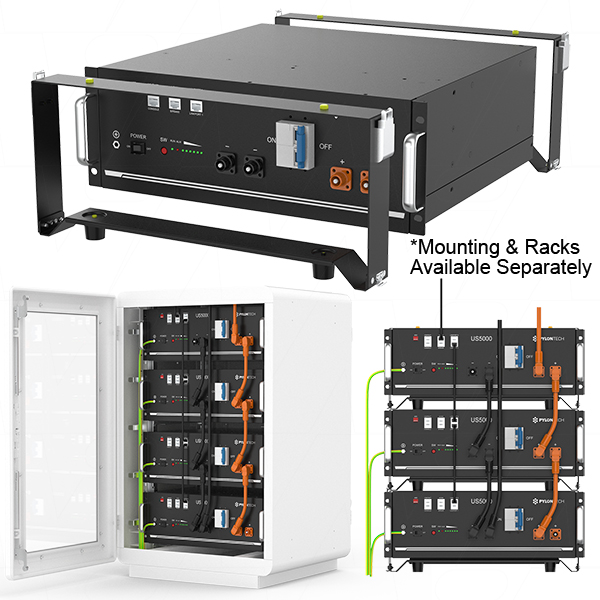

Pylontech US5000-B 48V 100Ah Rack Mounted LiFePO4 Battery Module

Each Battery comes with a 210MM long interlinking Kit to connect batteries in Parallel.

US5000-B is the latest and highest capacity version HESS battery system designed by Pylontech. It's long life characteristics, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end users and the strong technical capability of Pylontech.

Pylontech ensure the highest quality by designing & manufacturing their own Lithium Phosphate (LiFePO4) batteries and BMS boards.

Features:

4RU size (161mm tall)
Cycle life: >6000 cycles @ 25°C with 95% DoD for daily cyclic applications
Usable capcity of 4.56kWh @ 48 VDC
Working Temperature Range -10°C to 55°C, (Charging 0~55°C: Discharging -10~55°C)
Compact and fashionable 19" rack design to suit bracket, rack or cabinet installations
Modular design gives the you the power to design systems from 4.8kWh to a commercial sized 1.704MWh
Compatible with many available Hybrid inverters
Backwards Compatible with existing US series products
Pre-charge function to protect ESS from surge currents
Safety Cert. CE, UL1973, UKCA, UN38.3, IEC62619, IEC63056
Communication Protocols: CAN, RS485
15+ Year Design Life
10 year Warranty
