Pylontech LV-HUB CAN/RS485 Communications Master Controller Low Voltage Hub

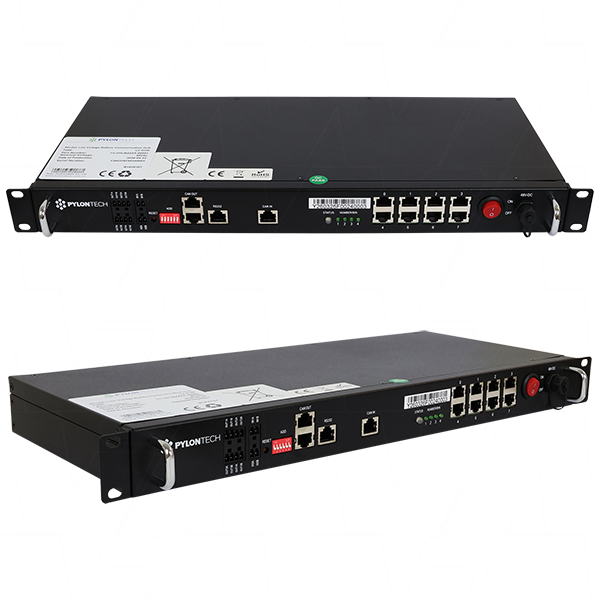

LV-HUB - RS485/CAN Communication hub for use with the US Series rack mount batteries from Pylontech

LV-Hub is the communications hub for use with strings of up to 8 units of US2000 or 8 units of US3000 batteries.

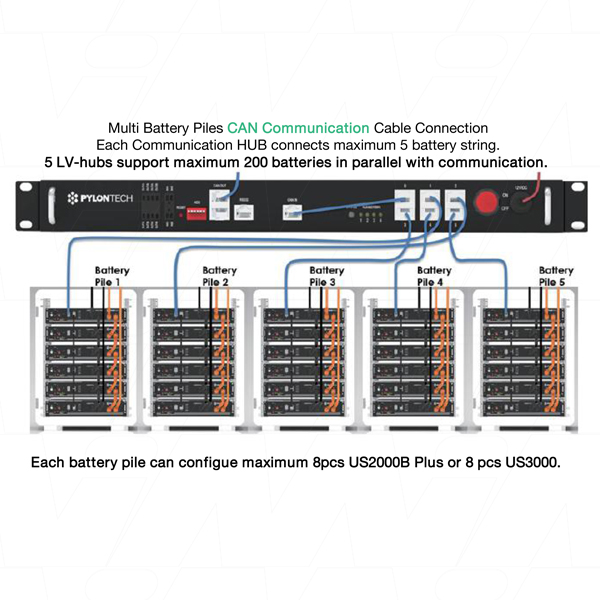

A single LV-Hub can manage up to 5 strings of 8 batteries (ie. 40 batteries), and can be expanded up to 5 LV Hubs to manage a total of 200 batteries.

Systems containing between 2 to 5 LV Hubs will require 1 additional LV Hub to act as the Master Hub.

Specifications:

Operating Voltage:	48VDC
Communications:	CAN/RS485
System Consumption:	2 Watts
Protection:	IP20
Operational Life:	15 years
Working Temp.:	-20 to +60 degrees celcius
Storage Temp.:	-40 to +80 degrees celcius
CAN (Max 5):	Baud rate: 500K; terminal resistance: 0/120 Ohm
RS485 (Max 5):	Baud rate: 9600/115200

Data Sheet

LV-HUB1601440253_1.pdf

Model No	LV-HUB
Selling Unit	EACH
Description	Pylontech LV-HUB CAN/RS485 Communications Master Controller Low Voltage Hub
Application	For more than 8 units of US2000 or US3000 Series batteries in a maximum of 5 piles
Voltage	48V
Brand	Pylontech
Width	442mm
Height	44mm
Length/Breadth/Depth	150mm
Weight	3500g
Brand	Pylontech
