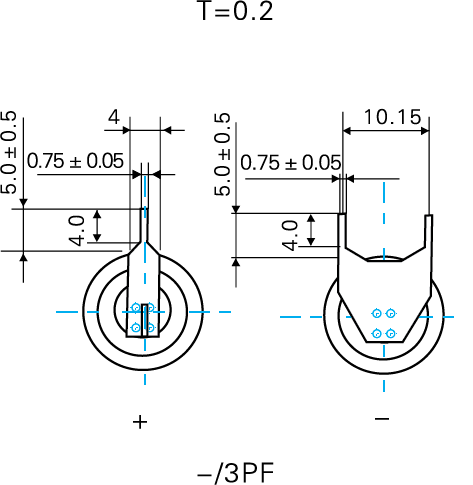

Fanso ER14505H/3PF AA size 3.6V 2700mAh Lithium Thionyl Chloride Battery - Bobbin Type with S+ D- 10mm Pins

ER14505H/3PF
Fanso ER14505H/3PF AA size 3.6V 2700mAh Lithium Thionyl Chloride Battery - Bobbin Type with S+ D- 10mm Pins

$11 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No ER14505H/3PF
Selling Unit EACH
Description Fanso ER14505H/3PF AA size 3.6V 2700mAh Lithium Thionyl Chloride Battery - Bobbin Type with S+ D- 10mm Pins
Chemistry Lithium Thionyl Chloride
Voltage 3.6V
Nominal Capacity 2600mAh
Maximum Continuous
Discharge Current
50
Brand Fanso
Size AA
Width 14.5mm
Height 50.5mm
Weight 19g
Weight(kg) 0.05
Brand Fanso

ER14505H/3PF primary lithium battery with S+ D- 10mm Pins.

Wuhan Fanso high capacity range.

Features:

  • Long shelf life: self discharge rate less than 1% at 25°C.
  • High energy density (700Wh/kg).
  • Long operating life.
  • Stainless steel container and end caps.
  • Wide temperature range: -55ºC ~ +85ºC.
  • Hermetic glass-to-metal sealing.
  • Non-flammable electrolyte.
  • Compliant with IEC86-4 safety standard.
  • UL Component Recognition MH46165.
  • High and stable operating voltage.

Suitable for applications including:
  • Utility metering
  • Alarm and security devices
  • Memory backup power
  • Professional electronics
  • GPS tracking system
  • Military system
  • Automotive electronics
  • Real-time clock

Store in a cool dry place not exceeding +30ºC.
Data Sheet ER14505H_3PF1600907228_1.pdf
