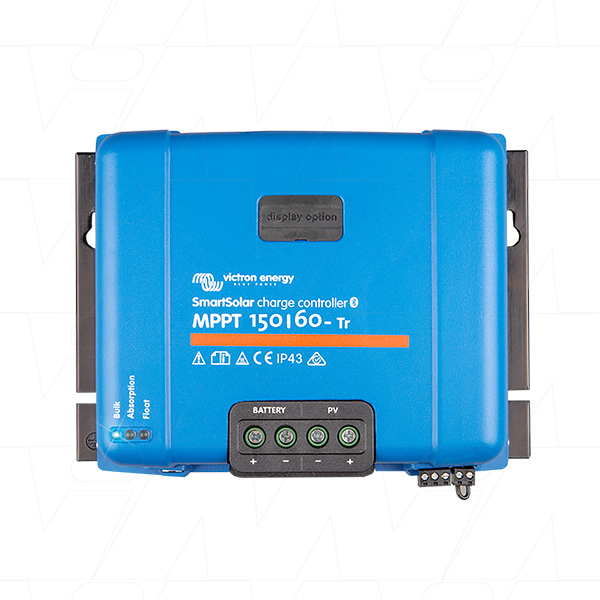

Victron Energy SmartSolar 12V/24V/36V/48V 60A Smart Solar Charge Controller MPPT Type 150/60-Tr SCC115060210

SmartSolar MPPT 150/60-Tr
Victron Energy SmartSolar 12V/24V/36V/48V 60A Smart Solar Charge Controller MPPT Type 150/60-Tr SCC115060210

$617 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No SmartSolar MPPT 150/60-Tr
Selling Unit EACH
Description Victron Energy SmartSolar 12V/24V/36V/48V 60A Smart Solar Charge Controller MPPT Type 150/60-Tr SCC115060210
Original Brand Victron Energy SCC115060211d
Voltage 12/24/36/48V
Brand Victron Energy
Size 60A
Width 250mm
Height 185mm
Length/Breadth/Depth 95mm
Weight 3000g
Weight(kg) 4.2
Brand Victron Energy

This package comes supplied with:

  • 12V/24V/36V/48V 60A Solar Charge Controller

Related Products

  • MPPT Control
  • Venus GX
  • Colour Control GX
  • Smart Battery Sense
  • VE.Direct LoRaWAN AU912-928
  • VE.Direct Bluetooth Smart Dongle
  • VE.Direct Cable 0.9m
  • (other cable lengths also available)
  • VE.Direct to USB Interface

SmartSolar MPPT 150/60-TR solar charge controller from Victron Energy with:

  • 12V/24V/36V/48V auto select battery voltage *Software tool required for 36V
  • 60A rated charge current
  • Maximum PV open circuit voltage - 150V absolute maximum coldest conditions
  • 860W @ 12V, 1720W @ 24V, 2580W @ 36V, 3440W @ 48V  maximum PV power
  • Automatic load disconnect
  • 99% peak efficiency
  • Reverse polarity (fuse) protection, PV reverse polarity protection, output short circuit protection, over temperature protection



Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 99%.

Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary witch (see manual for details).

Extensive electronic protection
Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.

Internal temperature sensor
Compensates absorption and float charge voltage for temperature.

Bluetooth Smart built-in: dongle not needed
The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct
For a wired data connection to a Color Control panel, Venus GX, PC or other devices

Remote on-off
To connect for example to a VE.BUS BMS.

Programmable relay
Can be programmed (a.o. with a smartphone) to trip on an alarm, or other events.

Optional: pluggable LCD display - click here to view
Remove the seal that protects the plug on the front of the controller, and plug-in the display.
