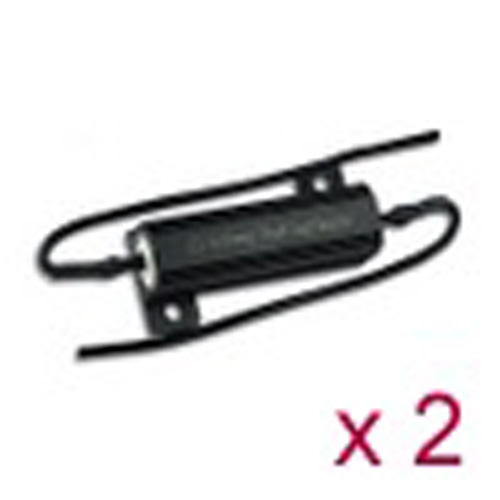

LED Autolamps LR12/2 12V Load Resistor, 50 Watt 6 Ohms (Twin blister)

Features / Specifications

• Designed for late model vehicles that display light failure warning.
• Draws same current as a 21 watt globe
• IP67 Shock/dust/water proof
• 5 Year Warranty


Fitting Instructions

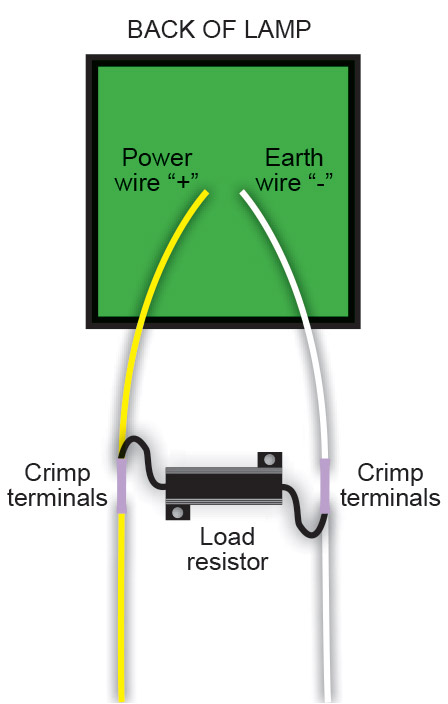

Must be mounted on metal surface, the resistor can reach temperatures of up to 170 Celsius. You may require up to 1 resistor per function on each side. The resistor should always be wired between the input wires of the lamp, Not the chassis of the vehicle or trailer! If fitted to the chassis, a bad earth connection is possible and can result in problems with the lighting system of the vehicle.

Technical Drawings
