MC2

You Save:$6.95 (33%)
Sale Price:$
Qty:
Shipping & Handling Calculator:

Post Code:
Model No MC2
Selling Unit EACH

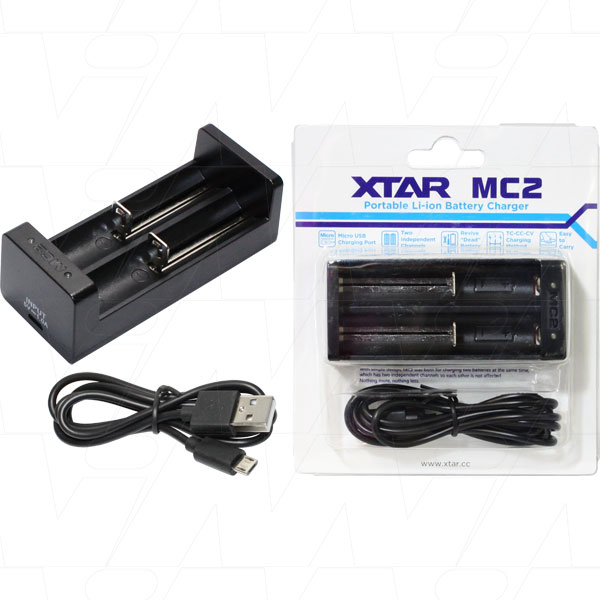

Description XTAR MC2 USB Input Automatic Two Channel 1-2 Cell Lithium Ion Battery Charger
Brand XTAR
Width 40mm
Height 32mm
Length/Breadth/Depth 92mm
Weight 42g
Weight(kg) 0.260
Comments

The XTAR MC2 is a two channel (1-2 cells) fully automatic lithium ion battery charger. Powered by the included 5VDC input USB cable the charger includes the following features:

  • Two cell charger for charging one or two 3.6V/3.7V lithium ion cell in sizes 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 26650.
  • Sliding contacts for firm contact with battery during charging and LED status indicators per channel.
  • Algorithm based 3 stage TC/CC/CV charging system with 0V discharged cell wake-up function, soft charge start followed by constant current then constant voltage charging.
  • Reverse polarity, short circuit & overcharge protection.
  • IC Temperature monitoring.
  • Intelligently adjusts current options depending on input power:
    • CC (constant current stage) charging rate with 5V 1.0A input = 500mA (±10mA).
    • CC (constant current stage) charging rate with 5V 0.5A input = 250mA (±10mA).
  • CV (constant voltage charging stage) 4.2V (±0.05V) cut-off current <40mA.
  • Compact, low heat design with fireproof ABS material.
  • Overheat protection, reverse polarity and short circuit protection.
  • 2 year repair warranty (when used according to specification & in normal conditions).

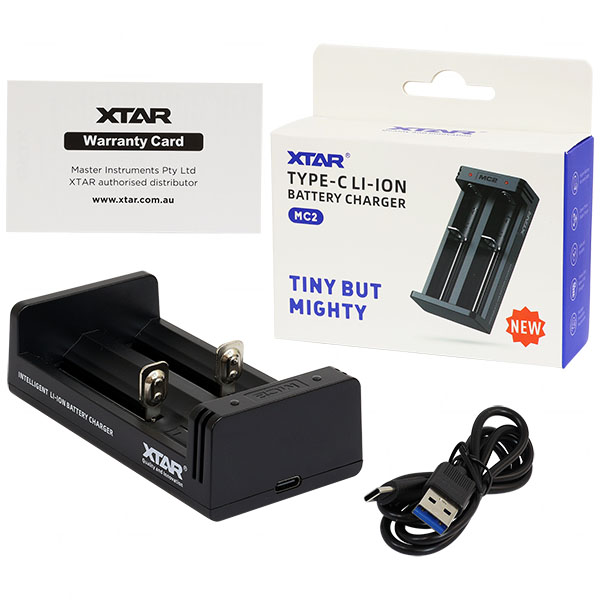

MC2 package includes:
  • MC2 charger
  • USB cable
  • Manual and warranty card
Optional accessories: 100-240VAC (world voltage) to 5VDC input power adaptor , 12VDC to 5VDC input cigarette light connection car plug also available separately.

To view the complete range of torch and laser sight batteries we have available please click this link .
