Blue Sea Systems HD-Series Heavy Duty Selector Battery Switch Blue Sea Systems BS-3002B HD-Series Heavy Duty Selector Battery Switch

BS-3002
Blue Sea Systems BS-3002B HD-Series Heavy Duty Selector Battery Switch

$176 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No BS-3002
Description Blue Sea Systems BS-3002B HD-Series Heavy Duty Selector Battery Switch
Weight(kg) 0.570
Brand Blue Sea Systems

Blue Sea Systems BS-3002B HD-Series Heavy Duty Selector Battery Switch

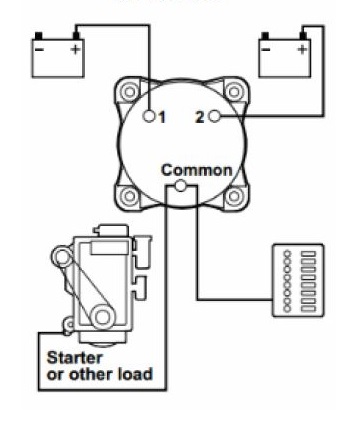

Switches isolated battery banks to all loads or combines battery banks to all loads
  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm²) battery cables

Blue Sea Systems BS-3002 HD-Series Heavy Duty Selector Battery Switch

Specifications
Switch Type  Selector 4 Position
Color Grey
Switch Positions 4
Battery Combine Yes
Alternator Field Disconnect  No
Maximum Voltage 32V DC
Terminal Stud Torque 220 in-lb (24.86 Nm)
Continuous Rating  500A
Intermittent Rating  700A (5 min)
Cranking Rating 10 sec  2750A
Cranking Rating 1 min  1150A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Quantity to Meet Ratings Two Cables / Terminal
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4" (M6) Screw
Terminal Stud Size 1/2" (M12)
Weight 1.25lb (0.57 kg)
