Model No MC1
Selling Unit EACH

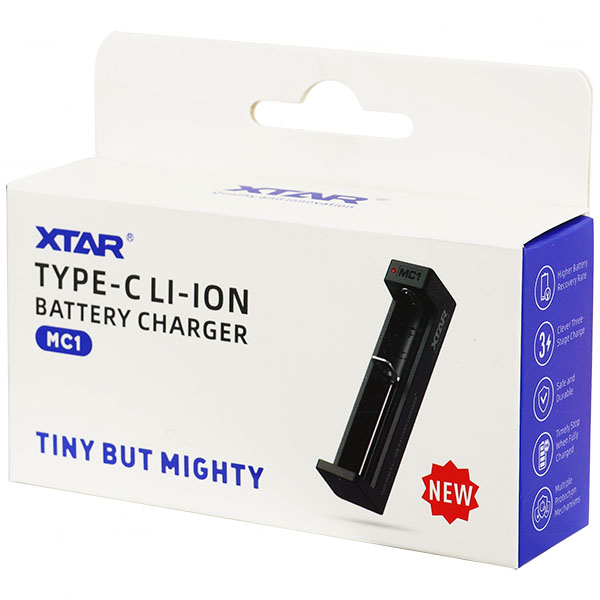

Description XTAR MC1 USB Input Automatic Single channel 1 cell lithium ion battery charger
Brand XTAR
Width 22mm
Height 26mm
Length/Breadth/Depth 92mm
Weight 20g
Weight(kg) 0.260

The XTAR MC1 is a single channel (1 cell) fully automatic lithium ion battery charger. Powered by the included 5VDC input USB cable the charger includes the following features:

  • Single cell charger for charging one 3.6V/3.7V lithium ion cell in sizes 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 22650, 25500, 26650
  • Algorithm based 3 stage TC/CC/CV charging system with 0V discharged cell wake-up function, soft charge start followed by constant current then constant voltage charging.
  • Reverse polarity, short circuit & overcharge protection.
  • IC Temperature monitoring.
  • CC (constant current stage) charging rate 500mA (+/-10mA). CV (constant voltage charging stage) 4.2V (+/-0.05V) cut-off current <40mA
  • 2 year repair warranty (when used according to specification & in normal conditions)
  • Optional 100-240VAC (world voltage) to 5VDC input power adaptor , 12VDC to 5VDC input cigarette light connection car plug also available separately.

To view the complete range of torch and laser sight batteries we have available please click this link .
