Model No SPP80
Description Projecta SPP80 12V 80W Polycrystalline Solar Panel
Weight(kg) 8
Brand Projecta
Comments

  ** FREIGHT INSURANCE IS MANDATORY FOR ALL SOLAR PANELS **

Ideal for maintaining large batteries and extending battery run time when travelling.Enough power to continuously run a compressor fridge
FEATURES
Compact and Powerful
Polycrystalline solar panels are manufactured from a solar cell that is cast from silicon. These cells are more efficient at producing power than an amorphorus panel, so the size of the panel is smaller yet produces greater output power.
Heavy Duty Frame
Corrosion resistant frames are constructed to withstand wind speeds in excess of 130Km/h in typical ground mounted applications. The frames are clear anodized and the inner corner connection has a strong mechanical resistance to the weather.
Tempered Low Iron Glass
Clear encapsulated insulation enhances solar cell performance and provides proven weather protection. Tempered low iron glass provides both better impact resistance and better light transmission, allowing the generation of more electricity by reducing the quantity of light that is reflected away from the module.
Fittings
Fitted with a sealed junction box with built in connection terminals.

SPECIFICATIONS

PART NO. SPP80
TYPE Polycrystalline
RATED POWER 80W
OPEN CIRCUIT 21V
SHORT CIRCUIT CURRENT 5040mA
PEAK POWER 17.5V (3430mA)
BATTERY CHARGE TIMES
AUTOMOTIVE 250-900CCA
MARINE 350-1000MCA
DEEP CYCLE 20-140Ah
CHARGING TIME 8-35Hrs
DIMENSIONS
670 Wide x 895 Long

Solar panels require Voltage control to prevent battery damage (Click Links below)

Projecta SC005 Solar Controller

Projecta SC010 Solar Controller

CTEK D250S DC to DC Charger (can be used as a Solar Controller)

Click here to find out more information on different types of Solar Panels

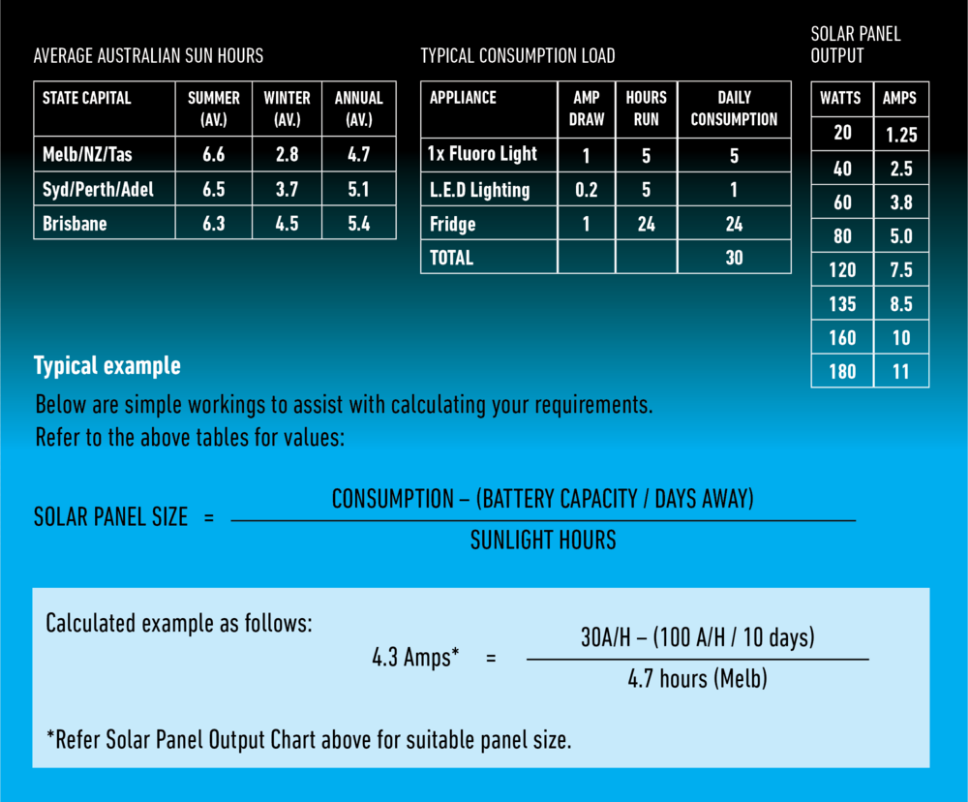

Solar Panel Selection Guide SPP801315465515_1.pdf
Data Sheet SPP801317263720_2.pdf

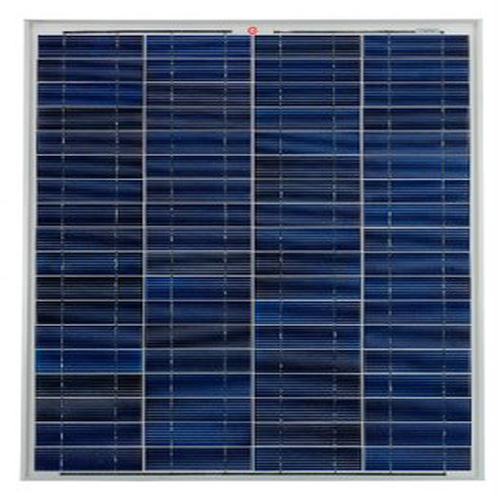

Projecta SPP80 12V 80W Polycrystalline Solar Panel
