SPP120

You Save:$111.25 (30%)
Sale Price:$
Qty:
Shipping & Handling Calculator:

Post Code:
Model No SPP120

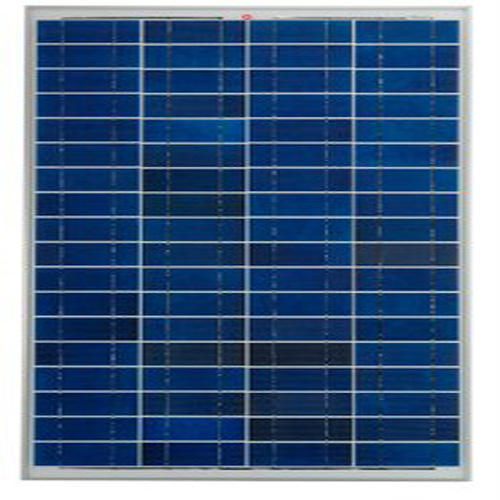

Description Projecta SPP120 12V 120W Polycrystalline Solar Panel
Weight(kg) 8
Brand Projecta
Comments

  ** FREIGHT INSURANCE IS MANDATORY FOR ALL SOLAR PANELS **

FEATURES
Compact and Powerful
Polycrystalline solar panels are manufactured from a solar cell that is cast from silicon. These cells are more efficient at producing power than an amorphorus panel, so the size of the panel is smaller yet produces greater output power.
Heavy Duty Frame
Corrosion resistant frames are constructed to withstand wind speeds in excess of 130Km/h in typical ground mounted applications. The frames are clear anodized and the inner corner connection has a strong mechanical resistance to the weather.
Tempered Low Iron Glass
Clear encapsulated insulation enhances solar cell performance and provides proven weather protection. Tempered low iron glass provides both better impact resistance and better light transmission, allowing the generation of more electricity by reducing the quantity
of light that is reflected away from the module.

Fittings
Fitted with a sealed junction box with built in connection terminals.

SPECIFICATIONS

PART NO.     SPP120

TYPE     Polycrystalline

RATED POWER     120W

OPEN CIRCUIT     21V

SHORT CIRCUIT CURRENT     7550mA
PEAK POWER     17.5V (3430mA)

BATTERY CHARGE TIMES

AUTOMOTIVE     250-1200CCA

MARINE     300-1500MCA

DEEP CYCLE     20-200Ah

CHARGING TIME     8-35Hrs

DIMENSIONS
670 Wide x 1335 Long



Solar panels require Voltage control to prevent battery damage (Click Links below)

Projecta SC005 Solar Controller

Projecta SC010 Solar Controller

CTEK D250S DC to DC Charger (can be used as a Solar Controller)

Click here to find out more information on different types of Solar Panels

Solar Panel Selection Guide SPP1201315465583_1.pdf
Data Sheet SPP1201317263757_2.pdf



Projecta SPP120 12V 120W Polycrystalline Solar Panel
