Model No
SPP60
Description

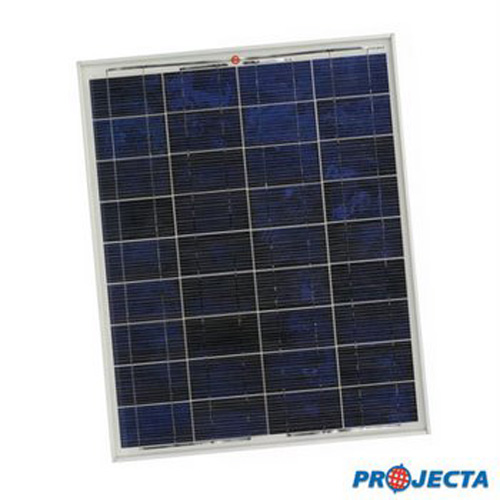

12 Volt 60 Watt Polycrystalline Solar Panel Solar Panels
Voltage(V)
12
Length(mm)
940
Width(mm)
545
Weight(kg)
5
Comments
FEATURES
Compact and Powerful
Polycrystalline
solar panels are manufactured from a solar cell that is cast from
silicon. These cells are more efficient at producing power than an
amorphorus panel, so the size of the panel is smaller yet produces
greater output power.
Heavy Duty Frame
Corrosion
resistant frames are constructed to withstand wind speeds in excess of
130Km/h in typical ground mounted applications. The frames are clear
anodized and the inner corner connection has a strong mechanical
resistance to the weather.
Tempered Low Iron Glass
Clear
encapsulated insulation enhances solar cell performance and provides
proven weather protection. Tempered low iron glass provides both better
impact resistance and better light transmission, allowing the
generation of more electricity by reducing the quantity
of light that is reflected away from the module.
Fittings Fitted with a sealed junction box with built in connection terminals.
SPECIFICATIONS
PART NO.
SPP60
TYPE
Polycrystalline
RATED POWER
60W
OPEN CIRCUIT
21V
SHORT CIRCUIT CURRENT
3760mA
PEAK POWER
17.5V (3430mA)
BATTERY CHARGE TIMES
AUTOMOTIVE
250-650CCA
MARINE
300-700MCA
DEEP CYCLE
20-100Ah
CHARGING TIME
8-35Hrs
Solar panels require Voltage control to prevent battery damage
