Model No
SPP80K
Description

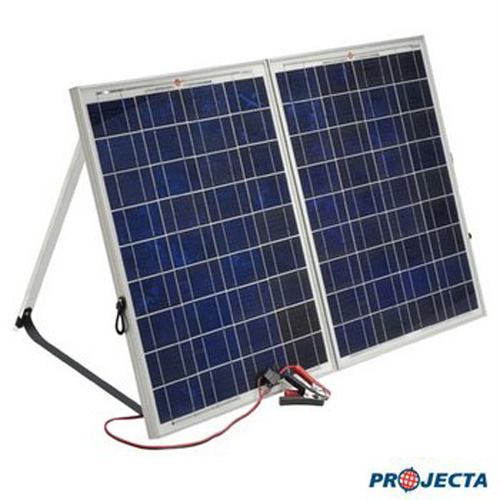

12 Volt 80 Watt Polycrystalline Solar Panel Kit Solar Panels
Voltage(V)
12
Weight(kg)
8
Comments
FEATURES
Compact and Powerful
An
80W Solar Panel is the minimum recommended to continuously power a
compressor fridge. Compact in size, this unit folds up easily for
simple storage and vehicle transportation.
Convenient Carry Bag
This durable padded bag protects your solar panel during storage and transportation.
Carry Handle and Safety Loop
Helps to prevent damage to your solar panel.
Built in Solar Controller Maintains your battery in a fully charged state while protecting it from over charge and solar discharge.
Fold Away Support Leg Convenient
support legs fold out to allow easy mounting on flat ground. The legs
place the panels at an optimum angle for maximum performance.
5 Metre Lead Makes battery connection easy.
SPECIFICATIONS
PART NO.
SPP80K
TYPE
Polycrystalline
RATED POWER
80W
OPEN CIRCUIT
21V
SHORT CIRCUIT CURRENT
5000mA
PEAK POWER
VOLTAGE
17.5V
PEAK POWER VOLTAGE
4560mA
TEST CONDITIONS
1000W/m2, 25°C
BATTERY CHARGE TIMES
AUTOMOTIVE
300–800CCA
MARINE
350–900MCA
DEEP CYCLE
50–140Ah
CHARGING TIME
6–20 Hours
Dimensions when folded - 55cm x 67cm x 6cm
To achieve full Deep Cycle Battery Charge from your Solar Panel use a DC to DC Charger (see Links Below)
