Model No
SPP40
Description

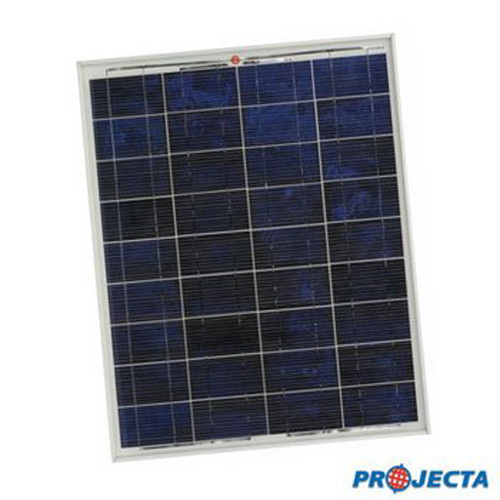

12 Volt 40 Watt Polycrystalline Solar Panel Solar Panels
Voltage(V)
12
Length(mm)
675
Width(mm)
545
Weight(kg)
3
Comments
FEATURES
Compact and Powerful
Polycrystalline
solar panels are manufactured from a solar cell that is cast from
silicon. These cells are more efficient at producing power than an
amorphorus panel, so the size of the panel is smaller yet produces
greater output power.
Heavy Duty Frame
Corrosion
resistant frames are constructed to withstand wind speeds in excess of
130Km/h in typical ground mounted applications. The frames are clear
anodized and the inner corner connection has a strong mechanical
resistance to the weather.
Tempered Low Iron Glass
Clear
encapsulated insulation enhances solar cell performance and provides
proven weather protection. Tempered low iron glass provides both better
impact resistance and better light transmission, allowing the
generation of more electricity by reducing the quantity
of light that is reflected away from the module.
Fittings Fitted with a sealed junction box with built in connection terminals.
SPECIFICATIONS
PART NO.
SPP40
TYPE
Polycrystalline
RATED POWER
40W
OPEN CIRCUIT
21V
SHORT CIRCUIT CURRENT
2500mA
PEAK POWER
17.5V (2280mA)

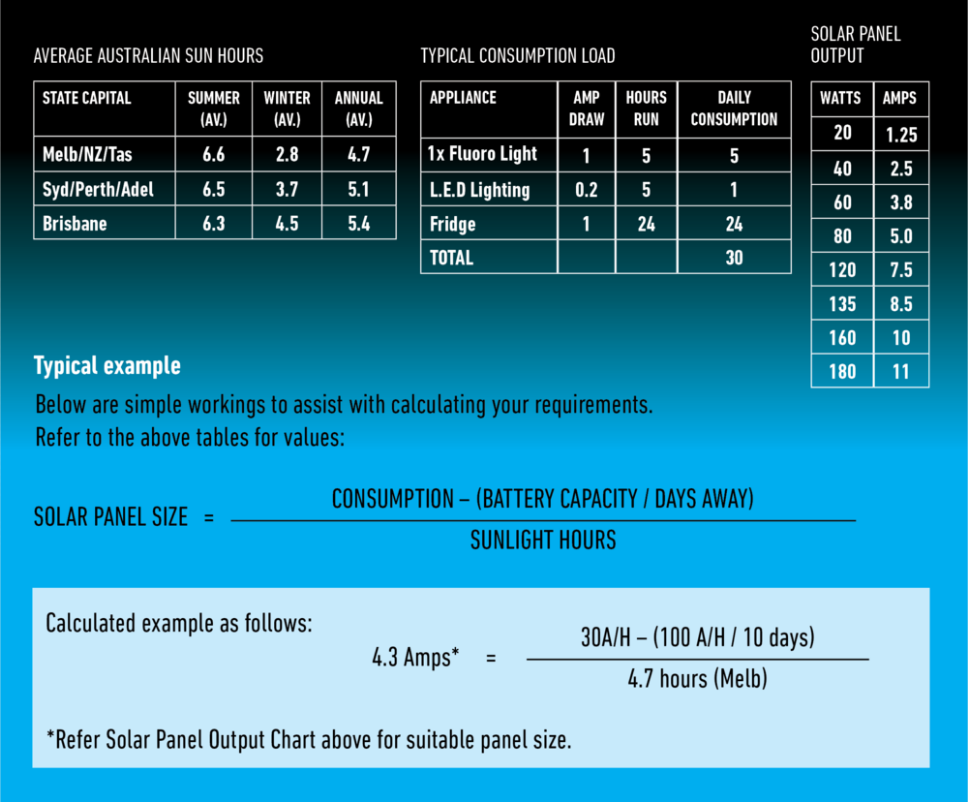

BATTERY CHARGE TIMES
AUTOMOTIVE
250-500CCA
MARINE
250-550MCA
DEEP CYCLE
20-70Ah
CHARGING TIME
10-30Hrs
Solar panels require Voltage control to prevent battery damage
