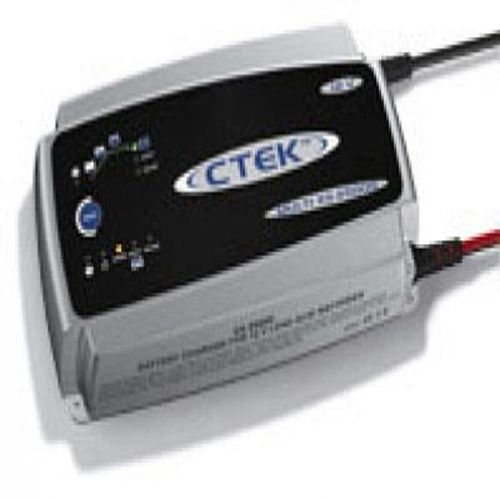

MXT14 (XT14000)

SPECIFICATION

Voltage AC 170–260VAC, 50–60Hz
Back current drain* < 1mA
Voltage Charging Voltage Nominal: 24V 2 8.8V; 29.4V or 31.4V Ripple** Max 5% rms
Current 14A max
Ambient Temperature -20°C to +50°C, power is reduced automatically at increased ambient temperature.
Cooling Natural convection.
Charging cycle MULTI XT 14000 is a multi stage fully automatic charger
Type of batteries All types of 24V lead-acid batteries (Wet, MF, AGM and GEL).
Battery Capacity 20-225Ah
Dimensions 191 x 89 x 48 mm (L x W x H)
Insulation IP65***
Weight 1.8kg
2 YEAR WARRANTY

CTEK Wall Hanger suitable for this charger. CLICK HERE.
