SIN3500

Sinergex NITRO

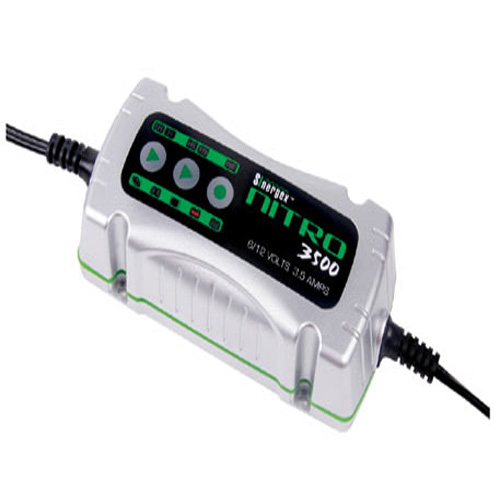

SIN3500/12 6 & 12 Volt Digital Charger
FEATURES
• Charge 6 & 12 Volt Batteries
• 4 Stage Charging
• IP65 Waterproof Construction
• Anti-Spark Technology
• Reverse Polarity Protection
• Temperature Compensation
• Ultra Compact Design
• Simple Touch Button Control

Sinergex Nitro™ series are advanced digital automatic battery chargers. Compact in size, Nitro chargers can literally fit in the palm of your hand. Constructed from ultra tough ABS plastic, the Nitro is IP65 water proof and suitable for almost any environment. Using microprocessors, the Nitro will assess the condition of your battery and then provide the optimum charge in 4 stages. The Nitro has the ability to recover severely discharged batteries with Soft Start Technology. During this charging stage the Nitro will deliver a soft charge or reduced current charge until the battery’s voltage reaches 12 volts. The charging stages Bulk, Absorption and Float will then follow.

The Nitro’s Touch Button front panel allows you to control the charger at the touch of a finger. Simply select the voltage of the battery being charged, press the start button and the Nitro will do the rest. The user panel also features easy to read LED status indicators so you know when your battery is charged.

The Nitro includes Smart DC Battery Connectors for simple use and increased safety and performance. Built in voltage and temperature sensors measures the temperature and voltage at the battery terminals and automatically adjust the voltage for an optimum charge. The Smart Connectors also incorporate a warning buzzer and LED to warn of incorrect connection. The Smart connectors are also protected by Anti-Spark technology for safe operation.
TECHNICAL SPECIFICATIONS
INPUT VOLTAGE 220-240VAC
INPUT FREQUENCY 50 Hz
NOMINAL OUTPUT VOLTAGE 7.2VDC or 14.4VDC(14.2 VDC Gel
OUTPUT CURRENT 3.5 Amp MAX
CHARGE ALGORITHM Soft Start, Bulk, Absorption, Float
EFFICIENCY 75%
OPERATING TEMPERATURE-20 Degree C to + 45 Degrees C Auto Compensation
SUITABLE BATTERY TYPES Lead Acid, AGM, MF,GEL
SHORT CIRCUIT PROTECTION YES
REVERSE POLARITY YES
BATTERY OVER VOLTAGE PROTECTION YES
CHARGER OVER HEAT PROTECTION YES
BATTERY OVERHEAT PROTECTION YES

 2 Year Warranty
