OPTIMA 34/78

Related Products


CTEK MXS5.0
CTEK 12 Volt 5 Amp Charger

LVG3500AU
NOCO 6V & 12V 3.5A UltraSafe Battery Charger and Maintainer

3478HD (3478-XXCS)
Optima Hold Down Tray
You Save:$156.58 (35%)
Sale Price:$
Qty:
Shipping & Handling Calculator:

Post Code:
Model No OPTIMA 34/78

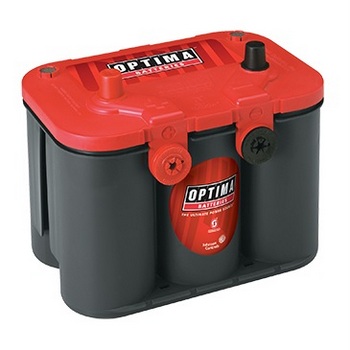

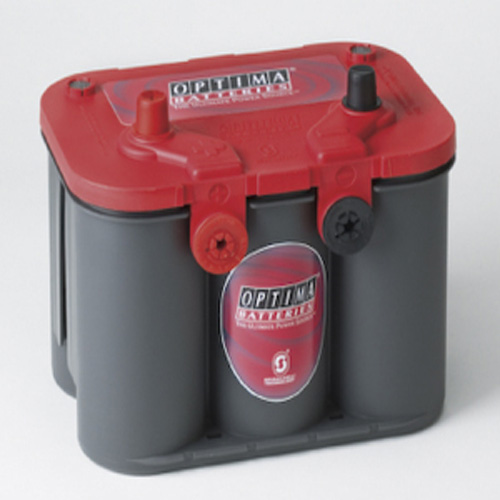

Description Optima 34/78 Red Top Starting Battery 12V 800CCA
Weight(kg) 17.7
Product Rating Batteries Direct 5 Stars Rating - The best quality product of its type with a proven reliability and excellent warranty support
Brand Optima
Comments
Optima Red Top Starting Battery

Model Voltage

CCA (Amps)

Ah (@ C20)
RC (in mins)
Weight (kg)
Terminals
Dimensions** (L x W x H)(mm)
6V-1050
6
800
50
110
9.4
+ SAE -
254x90x208
25
12
720
44
90
14.5 + SAE -
238x175x198
35
12
720  44 90  14.5  - SAE +
238x175x198
75/25
12
720  44
90  15.1
+ SAE & GM -
238x175x198
34
12
800  50
110
17.3
+ SAE -
254x171x199
34R
12
800  50
110  17.3  - SAE + 254x171x199
34/78
12
800  50
110  17.7  + SAE & GM -
254x173x199
78
12
800
50
110
17.3
+ GM -
256x186x184
 *Specifications may change without notice **Dimensions are overall maximum and include all handles

OPTIMA® REDTOP® 34/78 Ultra high-performance SPIRALCELL TECHNOLOGY® AGM (absorbent glass mat) battery with reliable cranking power for your auto, car or truck and twice the life. The OPTIMA® REDTOP® will outperform and outlast traditional batteries in demanding cranking/starting applications. The ultimate high-CCA starting battery for vehicles that have alternators capable of keeping up with all electrical loads.

If you have demanding electrical accessory loads such as winches, audio systems, and other devices, take a look at the YELLOWTOP® product line.

The OPTIMA® model number for this battery is 34/78. If you are replacing an OPTIMA® battery you already have, this model is the same as batteries marked 8004-003, 9004-003, 27990, 34-78, 34/78-980, RED34/78, SC34U, or N9934/78RED.

Warranty: 3 years private use, all OPTIMA® have their warranty details on the top label and are honoured by the warranty stated on that label.

Battery Model: 34/78
Part Number: 8004-003
NSN: 6140 01 457 4339
UPC Code: 8 11405 00003 4

Performance Data

Cold Cranking Amps: 800
Cranking Amps: 1000
Nominal Voltage: 12 volts
Open Circuit Voltage (fully charged): 12.8 volts
Internal Resistance (fully charged): 0.0030 ohms
Capacity: 50 Ah (C/20)
Reserve Capacity: BCI: 100 minutes (25 amp discharge, 80°F (26.7°C), to 10.5 volts cut-off)

Physical Characteristics

Plate Design:

High purity lead-tin alloy.  Wound cell configuration utilizing proprietary SPIRALCELL TECHNOLOGY®.

Electrolyte:

Sulfuric acid, H2SO4

Case: Polypropylene
Case Color: Dark Gray
Cover Color: “OPTIMA“ Red
Group Size: BC I: 34/78
Post Type: Dual SAE/GM
Weight: 38.8 lb
Length: 10.06 in
Width: 6.94 in
Height: 7.88 in

Power

CCA (BCI 0°F): 800 amps
MCA (BCI 32°F): 1000 amps

Recommended Charging

The following charging methods are recommended to ensure a long battery life:
(Always use a voltage regulated charger with voltage limits set as described below.)

Model: 34/78
These batteries are designed for engine starting applications.  They are not recommended or warranted for use in deep cycle applications.


Recommended Charging Information

Alternator: 13.3 to 15.0 volts; no amperage limit
Battery Charger: 13.8 to 15.0 volts; 10 amps maximum; 6-12 hours approxima te
Float Charge: 13.2 to 13.8 volts; 1 amp max imum current (indefinite time a t lower voltages)
Rapid Recharge (Constant voltage charger): Max imum voltage 15.6 volts. No current limit as long as ba ttery tempera ture rema ins below 125°F (51.7°C ). C harge until current drops below 1 amp. All limits must be stric tly adhered to.
