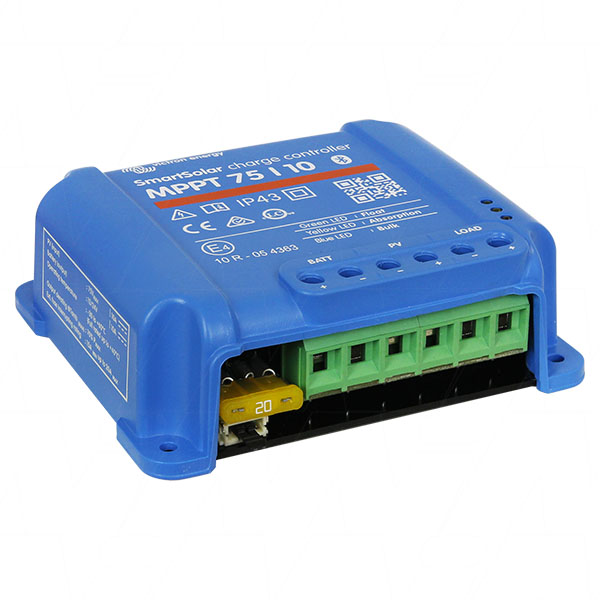

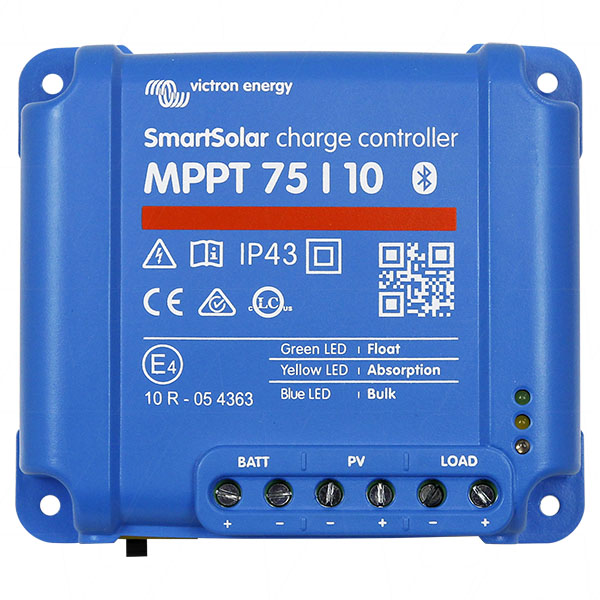

Victron Energy SmartSolar 12V/24V 10A Solar Charge Controller MPPT Type SCC075010060R (Bluetooth Smart Built-in)

SmartSolar MPPT 75/10
Victron Energy SmartSolar 12V/24V 10A Solar Charge Controller MPPT Type SCC075010060R (Bluetooth Smart Built-in)

$99 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No SmartSolar MPPT 75/10
Selling Unit EACH
Description Victron Energy SmartSolar 12V/24V 10A Solar Charge Controller MPPT Type SCC075010060R (Bluetooth Smart Built-in)
Original Brand Victron Energy SCC075010060Rd
Voltage 12/24V
Brand Victron Energy
Size 10A
Width 113mm
Height 100mm
Length/Breadth/Depth 40mm
Weight 500g
Weight(kg) 1
Brand Victron Energy

This package comes supplied with:

  • 12V/24V 10A Solar Charge Controller

Related Products

  • MPPT Control
  • Venus GX
  • Colour Control GX
  • VE.Direct LoRaWAN EU863-870
  • VE.Direct LoRaWAN US902-928
  • VE.Direct Bluetooth Smart Dongle
  • VE.Direct Cable 0.9m
  • (other cable lengths also available)
  • VE.Direct to USB Interface
  • VE.Direct TX Digital Output Cable
  • VE.Direct Non-inverting Remote On/Off Cable
SmartSolar MPPT 75/10 solar charge controller from Victron Energy with:
  • 12V/24V auto select battery voltage
  • 10A rated charge current
  • 145W @12V or 290W @24V maximum PV power
  • Automatic load disconnect
  • 98% peak efficiency
  • Reverse polarity (fuse) protection, output short circuit protection, over temperature protection
Bluetooth Smart built-in: dongle not needed
The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct
For a wired data connection to a Color Control panel, PC or other devices

Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life.
The load output is short circuit proof.

Battery Life: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged' state and the ‘end of discharge' state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months.
The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

Programmable battery charge algorithm
See the software section on our website for details

Day/night timing and light dimming option
See the software section on our website for details

Programming, real-time data and history display options
- Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle and the MPPT app discovery sheet for screenshots.
- ColorControl panel

Data Sheet 3 SmartSolar MPPT 75_107589_3.pdf
