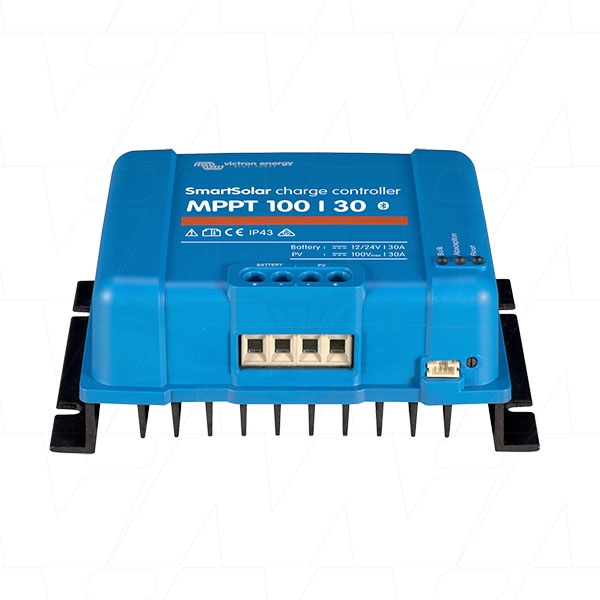

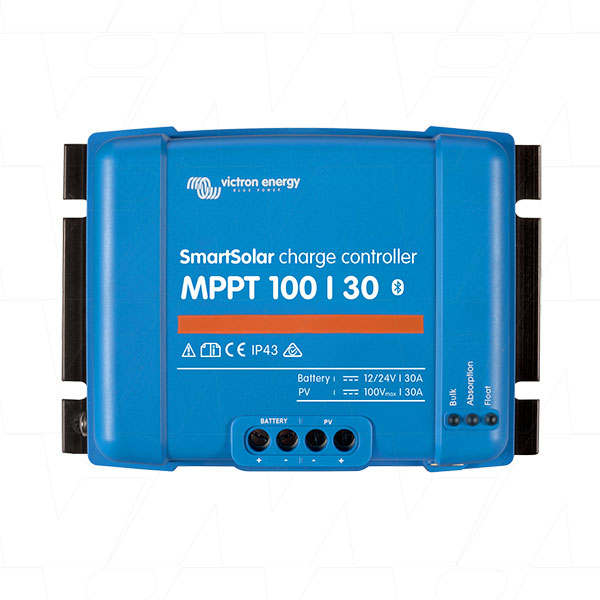

Victron Energy SmartSolar 12V/24V 30A Solar Charge Controller MPPT Type SCC110030210 (Bluetooth Smart Built-in)

SmartSolar MPPT 100/30
Victron Energy SmartSolar 12V/24V 30A Solar Charge Controller MPPT Type SCC110030210 (Bluetooth Smart Built-in)

$206 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No SmartSolar MPPT 100/30
Selling Unit EACH
Description Victron Energy SmartSolar 12V/24V 30A Solar Charge Controller MPPT Type SCC110030210 (Bluetooth Smart Built-in)
Original Brand Victron Energy SCC110030210d
Voltage 12/24V
Brand Victron Energy
Size 30A
Width 186mm
Height 130mm
Length/Breadth/Depth 70mm
Weight 1300g
Weight(kg) 1.5
Brand Victron Energy

This package comes supplied with:

  • 12V/24V 30A Solar Charge Controller

Related Products

  • MPPT Control
  • Venus GX
  • Colour Control GX
  • VE.Direct LoRaWAN EU863-870
  • VE.Direct LoRaWAN US902-928
  • VE.Direct Bluetooth Smart Dongle
  • VE.Direct Cable 0.9m
  • (other cable lengths also available)
  • VE.Direct to USB Interface
  • VE.Direct TX Digital Output Cable
  • VE.Direct Non-inverting Remote On/Off Cable

SmartSolar MPPT 100/30 solar charge controller from Victron Energy with:

  • 12V/24V auto select battery voltage
  • 30A rated charge current
  • 440W @ 12V or 880W @ 24V maximum PV power
  • Automatic load disconnect
  • 98% peak efficiency
  • Reverse polarity (fuse) protection, output short circuit protection, over temperature protection

Bluetooth Smart built-in: dongle not needed

The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.


VE.Direct

For a wired data connection to a Color Control panel, Venus GX, PC or other devices

Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximise energy harvest by locking to the optimum MPP.

Outstanding conversion efficinecy
No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).

Flexible charge algorithm
Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor compensates absorption and float charge for temperature.

Real-time data display options
- Apple and Android smartphones, tablets, and other devices.
- Color Control panel.
