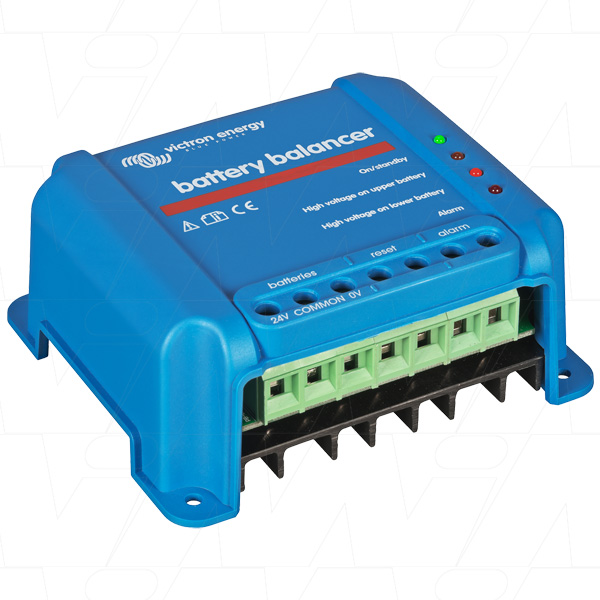

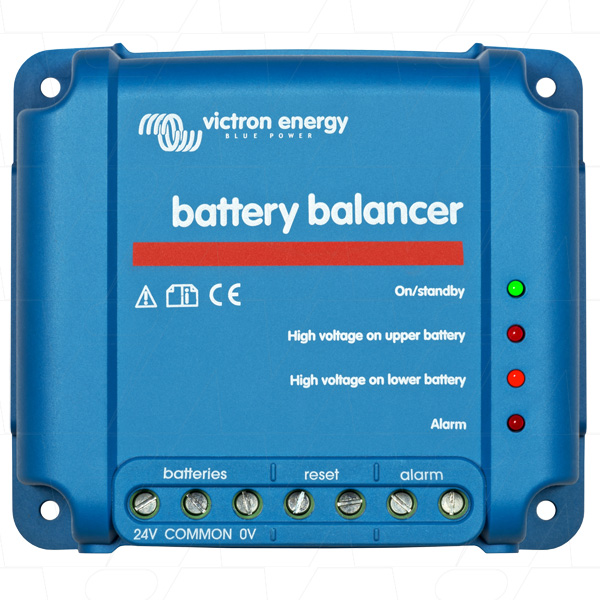

Victron Battery Balancer for two in Series 24V (Up to 18V per Battery & 36V Total) IP22 BBA000100100

BATTERY BALANCER
Victron Battery Balancer for two in Series 24V (Up to 18V per Battery & 36V Total) IP22 BBA000100100

$112 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No BATTERY BALANCER
Selling Unit EACH
Description Victron Battery Balancer for two in Series 24V (Up to 18V per Battery & 36V Total) IP22 BBA000100100
Application Smart Battery Protector
Original Brand Victron Energy BBA000100100d
Voltage 12-36V
Brand Victron Energy
Size 1A
Width 100mm
Height 47mm
Length/Breadth/Depth 113mm
Weight 200g
Weight(kg) 0.350
Brand Victron Energy
The Battery Balancer equalizes the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries.

When the charge voltage of a 24V battery system increases to more than 27V, the Battery Balancer will turn on and compare the voltage over the two series connected batteries. The Battery Balancer will draw a current of up to 1A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge.

If needed, several balancers can be paralleled.
A 48V battery bank can be balanced with three Battery Balancers.

Click here to find out more about the Battery Balancer Demo Web-App
