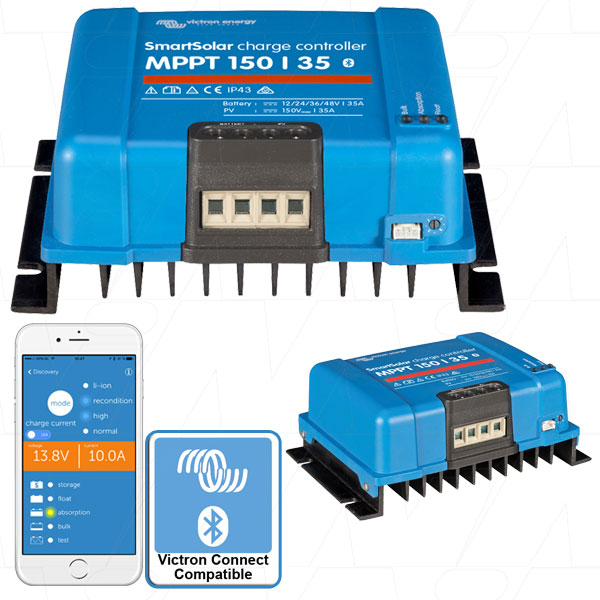

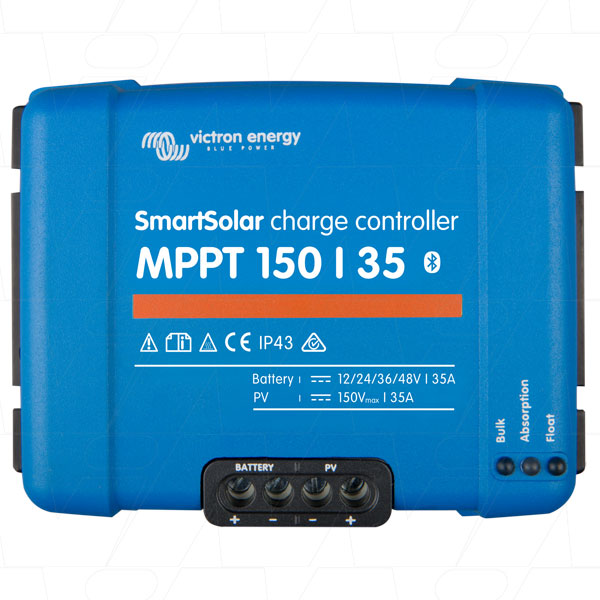

Victron Energy SmartSolar 12V/24V/36V/48V 35A Solar Charge Controller MPPT Type SCC115035210 (Bluetooth Smart Built-in)

SmartSolar MPPT 150/35
Victron Energy SmartSolar 12V/24V/36V/48V 35A Solar Charge Controller MPPT Type SCC115035210 (Bluetooth Smart Built-in)

$295 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No SmartSolar MPPT 150/35
Selling Unit EACH
Description Victron Energy SmartSolar 12V/24V/36V/48V 35A Solar Charge Controller MPPT Type SCC115035210 (Bluetooth Smart Built-in)
Original Brand Victron Energy SCC115035210d
Voltage 12/24/36/48V
Brand Victron Energy
Size 35A
Width 186mm
Height 130mm
Length/Breadth/Depth 70mm
Weight 1250g
Weight(kg) 1.5
Brand Victron Energy

SmartSolar MPPT 150/35 solar charge controller from Victron Energy with:

  • 12V/24V/36V/48V auto select battery voltage *Software tool required for 36V
  • 35A rated charge current
  • 500W @ 12V, 1000W @ 24V, 1500W @ 36V, 2000W @ 48V maximum PV power
  • Automatic load disconnect
  • 98% peak efficiency
  • Reverse polarity (fuse) protection, PV reverse polarity protection, output short circuit protection, over temperature protection
Bluetooth Smart built-in: dongle not needed
The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct
For a wired data connection to a Color Control panel, Venus GX, PC or other devices

Ultrafast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve.
Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP.
The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).

Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection
- Over-temperature protection and power derating when temperature is high.
- PV short circuit and PV reverse polarity protection.
- PV reverse current protection.

Internal temperature sensor
Compensates absorption and float charge voltage for temperature.

Real-time data display options
- Apple and Android smartphones, tablets and other devices.
- Color Control panel.
