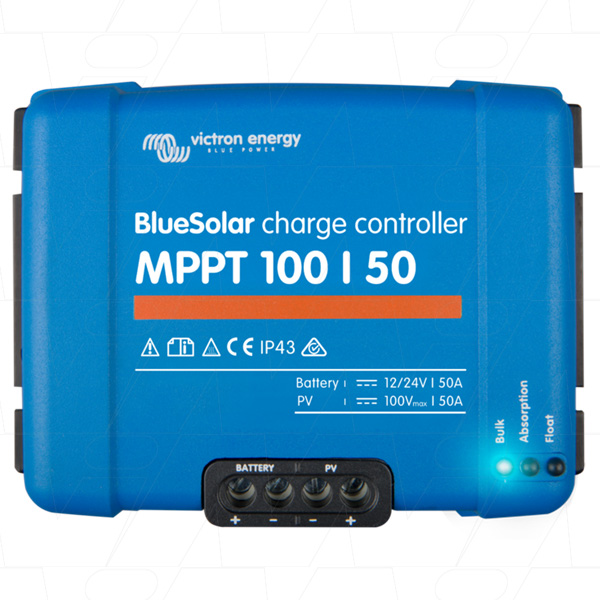

Victron Energy BlueSolar 12V/24V 50A Solar Charge Controller MPPT Type SCC020050200

BlueSolar MPPT100/50A
Victron Energy BlueSolar 12V/24V 50A Solar Charge Controller MPPT Type SCC020050200

$268 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No BlueSolar MPPT100/50A
Selling Unit EACH
Description Victron Energy BlueSolar 12V/24V 50A Solar Charge Controller MPPT Type SCC020050200
Voltage 12/24V
Brand Victron Energy
Size 50A
Width 70mm
Height 130mm
Length/Breadth/Depth 183mm
Weight 1300g
Brand Victron Energy

BlueSolar Charge Controllers MPPT 100/50

  • 12V/24V auto select battery voltage
  • 50A rated charge current
  • 700W @12V or 1400W @24V maximum PV power
  • Automatic load disconnect
  • 98% peak efficiency
  • Reverse polarity (fuse) protection, output short circuit protection, over temperature protection



Ultrafast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve.
Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP.
The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%.
The full output current up to 40°C (104°F).

Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection
Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.

Internal temperature sensor
Compensates absorption and float charge voltage for temperature.

Real-time data display options
- Apple and Android smartphones, tablets and other devices: see the VE.Direct to Bluetooth Smart dongle
- ColorControl panel


Data Sheet 3 BlueSolar MPPT100_50A7774_3.pdf
