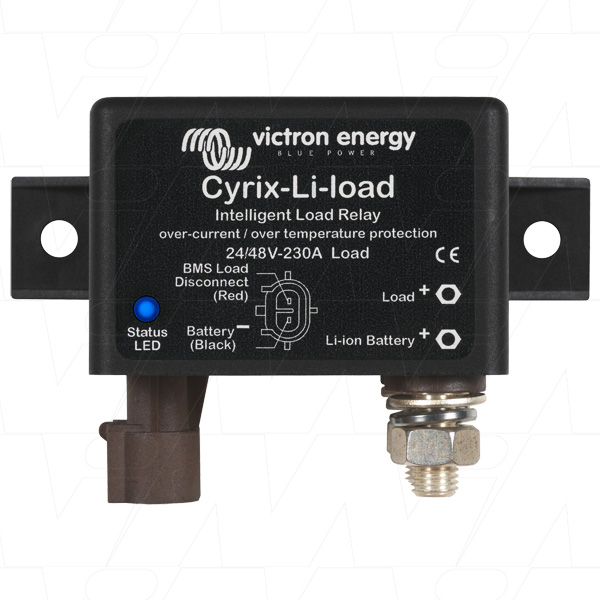

Victron Cyrix-Li-Load Intelligent Load Relay 24/48V-230A CYR020230450

CYRIX-LI-LOAD 24/48V-230A
Victron Cyrix-Li-Load Intelligent Load Relay 24/48V-230A CYR020230450

$289 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No CYRIX-LI-LOAD 24/48V-230A
Selling Unit EACH
Description Victron Cyrix-Li-Load Intelligent Load Relay 24/48V-230A CYR020230450
Original Brand Victron Energy CYR020230450d
Voltage 24/48V
Brand Victron Energy
Size 230A
Width 100mm
Height 65mm
Length/Breadth/Depth 50mm
Weight 270g
Weight(kg) 0.300
Brand Victron Energy
The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.

The LiFePO4 battery: preventing cell under voltage, overvoltage and over temperature

The first line of protection is cell balancing. All Victron LiFePO4 batteries have integrated cell balancing.
The second line of protection consists of:
- shut down of the load in case of imminent cell under voltage, and
- shut down or reduction of the charging current in case of imminent cell over voltage, high temperature (>50°C) or low temperature (<0°C).
The VE.Bus BMS is the core of the second protection line.
However, not all loads or chargers can be controlled directly by the VE.Bus BMS.
In order to shut down such loads or chargers several VE.Bus BMS controllable Cyrix switches are available.

Cyrix-Li-load
The Cyrix-Li-load will disengage when its control input becomes free floating.
If the battery voltage recovers after disconnection (which will happen when no other loads are connected to the battery), the output of the BMS will become high and the Cyrix will reengage after 30 seconds. After 3 attempts to reengage, the Cyrix will remain disengaged until battery voltage has increased to more than 13 V (resp. 26 V or 52 V)
during at least 30 seconds (which is a sign that the battery is being recharged).
Alternatively, a BatteryProtect can be used (advantage: very low power consumption).

LED status indication
LED on: engaged                LED 10 s flash: disengaged
LED 2 s flash: connecting     LED 2 s blink: disconnecting
LED 0,25 s blink: alarm (over temperature; voltage > 16 V; both batteries < 10 V; one battery < 2 V)
(multiply by two for 24 V)
