VECIP22-12/30-1

You Save:$209.34 (40%)
Sale Price:$
Qty:
Shipping & Handling Calculator:

Post Code:
Model No VECIP22-12/30-1
Selling Unit EACH
Description Victron Blue Smart IP22 SLA/LiFePO4 Charger 12V 30A Single Output Fan Assisted BPC123042012
Brand Victron Energy
Width 65mm
Height 235mm
Length/Breadth/Depth 108mm
Weight 1300g
Weight(kg) 1.5
Comments

Bluetooth Smart enabled
The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.

High efficiency
With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard.
And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.

Adaptive 6 - stage charge algorithm: test - bulk – absorption - recondition – float – storage
The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.

Storage Mode: less maintenance and aging when the battery is not in use
The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.

Also charges Li-ion (LiFePO4) batteries
LiFePO4 batteries are charged with a simple bulk – absorption – float algorithm.

NIGHT and LOW setting
When in NIGHT or LOW mode, the output current is reduced to max. 25% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.

Protected against overheating
Output current will reduce as temperature increases up to 50°C, but the Blue Smart Charger will not fail.

Eleven LEDs for status indication
Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY.
MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION

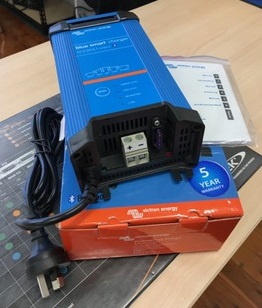

Inside the box

Victron VECIP22Victron VECIP22

Victron VECIP22

Victron VECIP22

Note: Cables from charger to battery is not included, Click here for cable options

The battery is charged, smartly... to perfect condition

The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and a longer life.

The battery is charged, smartly... to perfect condition

Recovery of deeply-discharged 'dead' batteries

Recovery of deeply-discharged 'dead' batteries

Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.

VictronConnect Compatible
VictronConnect lets you get live status information and configure any Victron products which either
have Bluetooth built in, or are connected to a VE.Direct Bluetooth Smart Dongle , or
VE.Direct to USB Interface
Find out more about VictronConnect here or download the Apps below

Data Sheet VECIP22-12_30-11518750446_1.pdf
