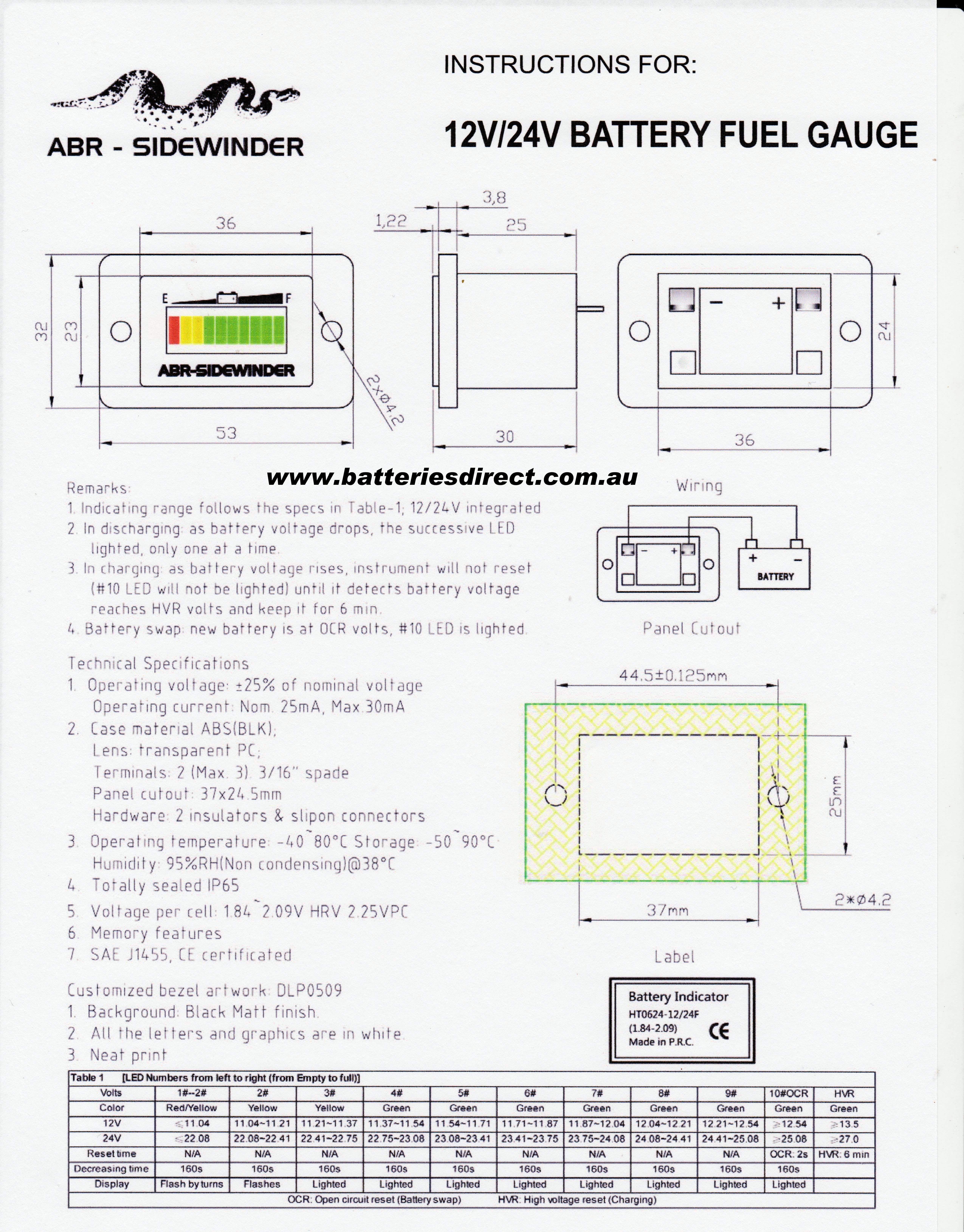

Rectangular battery discharge indicator (53x32)
Display: 10-bar LED indicates the battery state of charge.
Pins: 2x 5mm spade
Mounting: Panel Type
Lens Material: Poly glass
Case Material: ABS (Black)
Panel Cut-out (mm): 37x25mm (Depth 38mm)
Operating Temperature: -40’C to +85 ‘C
Storage Temperature: -50’C to +90 ‘C!
Humidity: 95% RH (Non Condensing) at 38’C
Operating voltage: 12/24V
EEPROM memory benefits:
powered on, instrument shows the memorized state of charge from the
last time it was shut off so that it has enough time to filter
information affected by instantaneous voltage fluctuation.
Battery full indication only occurs when battery is above 13.6V for more than 6 mins to ensure the battery is full.
Instrument reset can only occur if the battery is above 12.4V
Instrument LED delay is 180 sec for typical change of indication to prevent false reading from accessory start up current.
